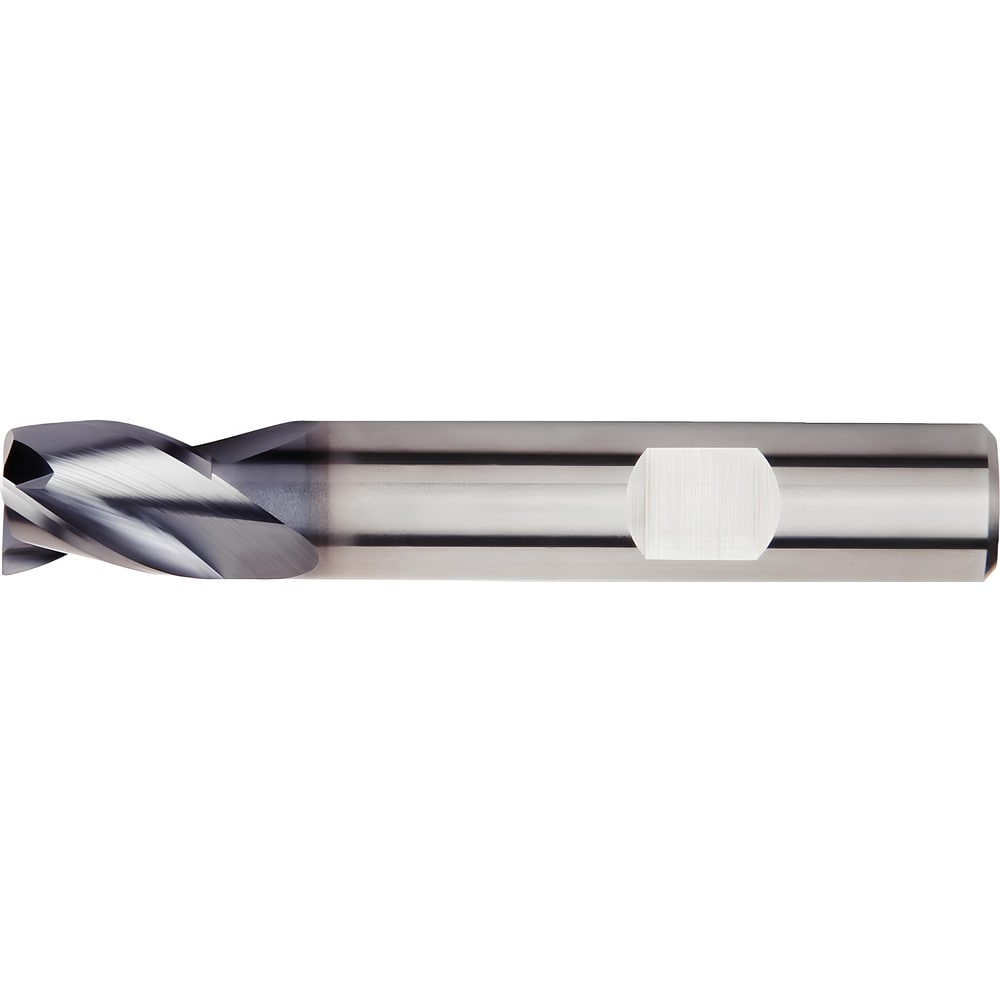

Corner Radius End Mill: 4 mm Dia, 5.00 mm LOC, 0.25 mm Radius, 3 Flute, Solid Carbide
Item #: 44194843
Brand: Kennametal
Model #: 4046358
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 5.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0098 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.25 |
| Overall Length (mm) | 58.00 |
| Coolant Through | No |
| Pitch | Coarse |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1969 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 6 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | F3AS |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Metric Bores; ER Single Angle Standard Collets |
| Helix Style | Medium |
