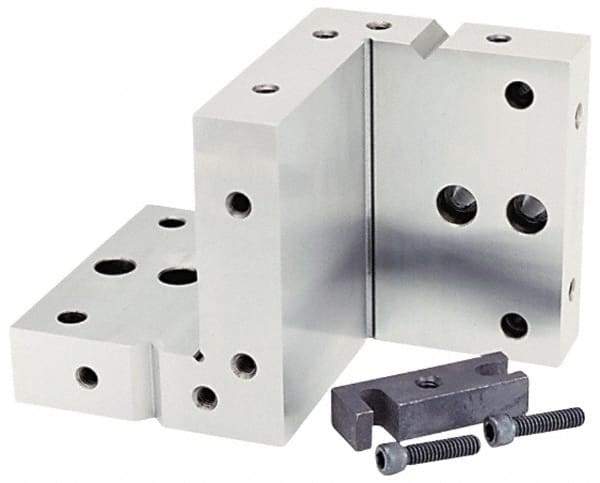

Suburban Tool - 4" Wide x 6" Deep x 4" High Steel Precision-Ground Angle Plate - Compound Plate, Machined Holes on Surface, Open End, 1" Thick, Pair of Plates
Item #: 00442764
Brand: Suburban Tool
Model #: CAP46M
Exact Tooling IR#: 04
Features and Benefits
Steel is a sting and durable material used for general purpose applications.
Precision ground plates are used for close tolerance layout and inspection set-up.
Compound angle plates are used for squaring as well as holding small round parts with the V-groove.
| Product Specifications | |
|---|---|
| Width (Inch) | 4 |
| Depth (Inch) | 6 |
| Height (Inch) | 4 |
| Material | Steel |
| Finish Type | Precision-Ground |
| Plate Surface | Machined Holes |
| Plate Style | Compound |
| Plate Design | Open End |
| Plate Thickness (Inch) | 1 |
| Number of Holes | 16 |
| Parallelism (Decimal Inch) | 0.0002 |
| Squareness (Decimal Inch) | 0.0002 |
| Hole Size | (16) 1/4-20; (4) 11/32" x 1/2" Counterbored |
| Single or Pair | Pair |
