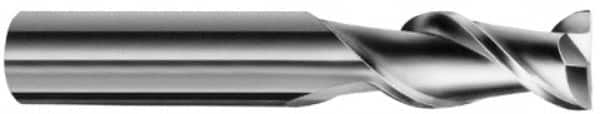

Corner Radius End Mill: 5/8″ Dia, 7/8″ LOC, 0.025″ Radius, 2 Flutes, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, 45 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series 45
Item #: 00391771
Brand: SGS
Model #: 91254
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 7/8 |
| Corner Radius (Decimal Inch) | 0.0250 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Reach Length (Inch) | 1-3/4 |
| Overall Length (Inch) | 3-1/2 |
| Maximum Helix Angle | 45.00 |
| Corner Radius Tolerance | +0.00000 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000 to -0.000430 in |
| Shank Diameter Tolerance | +0.00000/-0.00043 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 45 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
