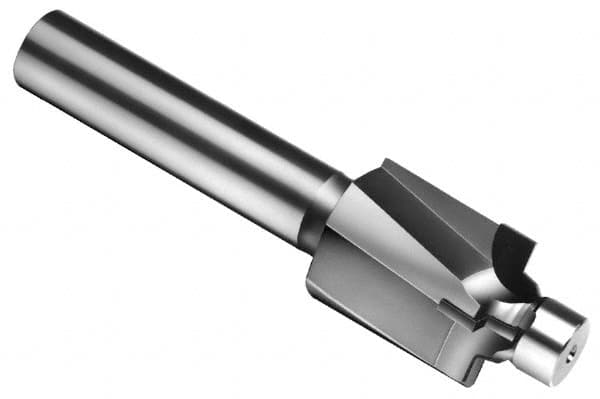

Porting Tool: 1.645″ Spotface Dia, 3/4″ Tube OD, Plain, 1-1/16 12″ Port - 0.975″ Min Pilot Dia, 4-1/8″ OAL, 4 Flutes, MS 16142
Item #: 00390310
Brand: Made in USA
Model #: 42P-12
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.6450 |
| Tube Outside Diameter Compatibility (Inch) | 3/4 |
| Pilot Type | Plain |
| Port Thread Size (Decimal Inch) | 1-1/16 - 12 |
| Minimum Pilot Diameter (Decimal Inch) | 0.9750 |
| Overall Length (Inch) | 4-1/8 |
| Number Of Flutes | 4 |
| Standards | MS 16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Seal Angle | 15 |
| Thread Type | Straight |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
