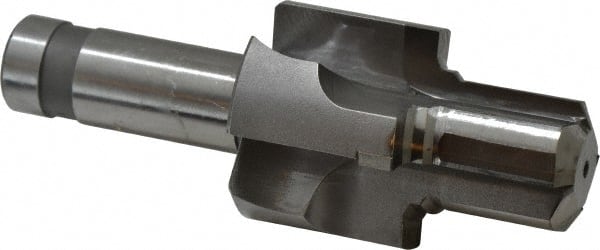

Porting Tool: 1.665″ Spotface Dia, 3/4″ Tube OD, Reamer, 1-1/16 12″ Port - 0.976″ Min Pilot Dia, 4-1/2″ OAL, 4 Flutes, 0.975, 0.986, AND 10050 & MS 33649
Item #: 00390161
Brand: Made in USA
Model #: 49R-12
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.6650 |
| Tube Outside Diameter Compatibility (Inch) | 3/4 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 1-1/16 - 12 |
| Minimum Pilot Diameter (Decimal Inch) | 0.9760 |
| Overall Length (Inch) | 4-1/2 |
| Number Of Flutes | 4 |
| Standards | MS 33649; 0.975; 0.986; AND 10050 |
| Shank Type | Straight |
| Identification Groove | No |
| Thread Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Military Specification | 0.986 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
| AND Specification | 0.975 |
