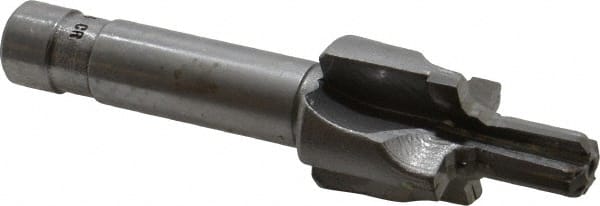

Porting Tool: 0.888″ Spotface Dia, 1/4″ Tube OD, Reamer, 7/16-2″ Port 0.386″ Min Pilot Dia, 3-21/32″ OAL, 4 Flutes, 0.385, 0.392, AND 10050 & MS 33649
Item #: 00390088
Brand: Made in USA
Model #: 49R-4
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.8880 |
| Tube Outside Diameter Compatibility (Inch) | 1/4 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 7/16-20 |
| Minimum Pilot Diameter (Decimal Inch) | 0.3860 |
| Overall Length (Inch) | 3-21/32 |
| Number Of Flutes | 4 |
| Standards | MS 33649; 0.392; AND 10050; 0.385 |
| Shank Type | Straight |
| Identification Groove | No |
| Thread Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Military Specification | 0.392 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
| AND Specification | 0.385 |
