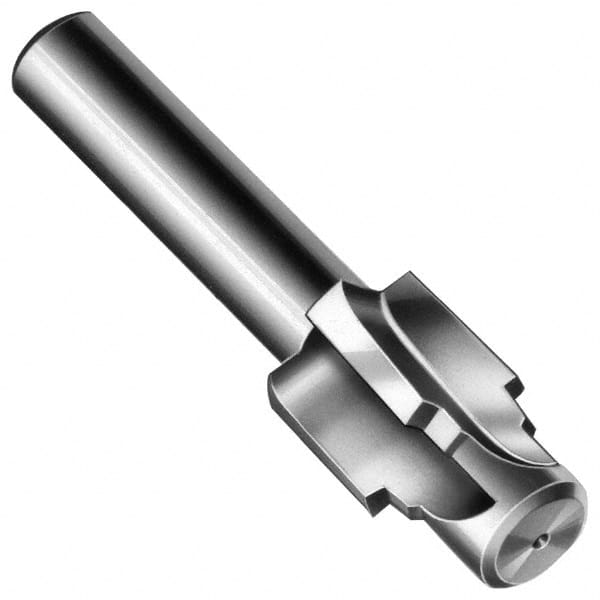

Porting Tool: 1.93″ Spotface Dia, 1″ Tube OD, Plain, 1-5/16 12″ Port, High Speed Steel - 1.225″ Min Pilot Dia, 4″ OAL, 4 Flutes, MS 16142
Item #: 00389718
Brand: Made in USA
Model #: H42P-16
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.9300 |
| Tube Outside Diameter Compatibility (Inch) | 1 |
| Pilot Type | Plain |
| Port Thread Size (Decimal Inch) | 1-5/16 - 12 |
| Tool Material | High Speed Steel |
| Minimum Pilot Diameter (Decimal Inch) | 1.2250 |
| Overall Length (Inch) | 4 |
| Number Of Flutes | 4 |
| Standards | MS 16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Seal Angle | 15 |
| Thread Type | Straight |
| Material Application | Non-Ferrous Metals; Ferrous Metals |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
