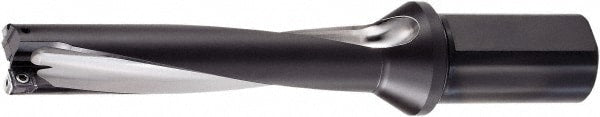

Indexable Insert Drill: P3D2900FS32M09, 29.00 mm Max Dia, 87.00 mm Max Depth, 3xD, 32.00 mm Shank Dia
Item #: 55897698
Brand: OSG
Model #: 7803244
Product Specifications
| Compatible Drill Style | P3D |
| Maximum Drill Diameter (mm) | 29.00 |
| Maximum Drill Depth (mm) | 87.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 094008 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | 78032 |
| Flute Length (mm) | 102.00 |
| Body Length | 110.00 |
| Shank Length (mm) | 60.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 9.62x9.62 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT094008 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
