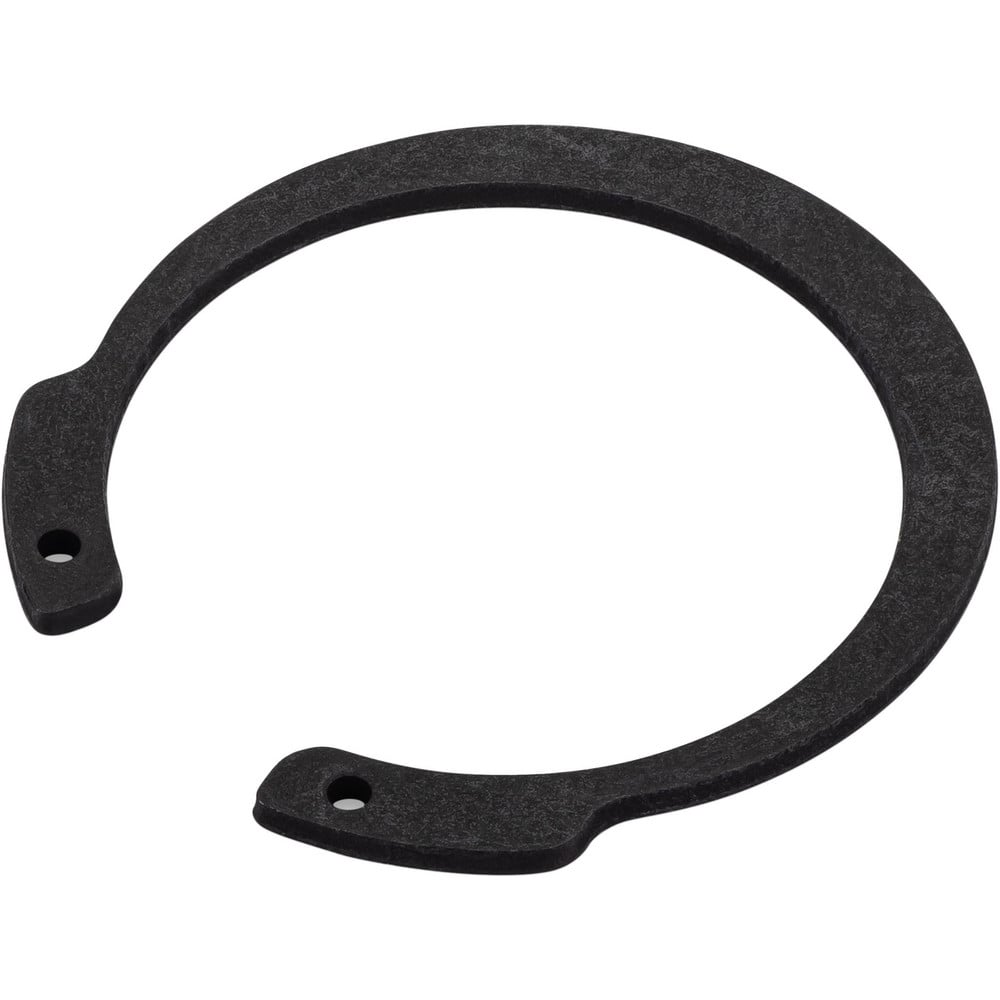

Internal Retaining Rings; Ring Type: HOI Style; Groove Diameter: 0.665; Bore Diameter (Decimal Inch): 0.6250; Groove Diameter Tolerance: +0.002/-0.004; Free Diameter: 0.675; Free Outside Diameter: 0; Material: Spring Steel; Groove Width (Decimal Inch): 0.
Item #: 00315283
Brand: Rotor Clip
Model #: HOI-62ST PD
Product Specifications
| Ring Type | HOI Style |
| Groove Diameter | 0.665 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Groove Diameter Tolerance | +0.002/-0.004 |
| Free Diameter | 0.675 |
| Free Outside Diameter | 0 |
| Material | Spring Steel |
| Groove Width (Decimal Inch) | 0.0290 |
| Finish | Phosphate |
| Groove Width Tolerance | +0.003/-0.000 |
| Groove Depth | 0.02 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Ring Thickness Tolerance | +/-0.002 |
| Thrust Load Capacity | 1015 |
