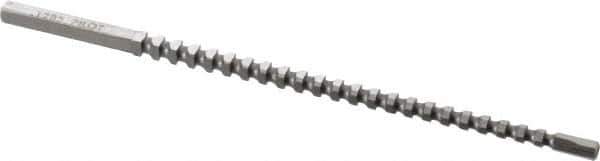

Dumont Minute Man - 1/8" x 4-1/8" Overall Length, 0.1285" Pilot Hole Diam, Square Broach - 0.1255 to 0.1265" Tolerance, 0.175 to 0.177" Across Corners, #30 Drill, 1/8" Pitch, 3/16 to 1/2" LOC, 700 Lbs. Pressure for Max LOC
Item #: 00307082
Brand: Dumont Minute Man
Model #: 66601
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Square Size (Inch) | 1/8 |
| Pilot Hole Diameter (Decimal Inch) | 0.1285 |
| Minimum Length of Cut (Inch) | 3/16 |
| Maximum Length of Cut (Inch) | 1/2 |
| Minimum Dimension Across Corners (Decimal Inch) | 0.1750 |
| Maximum Dimension Across Corners (Decimal Inch) | 0.1770 |
| Overall Length (Inch) | 4-1/8 |
| Pressure Required for Maximum Length of Cut (Lb.) | 700 |
| Tooth Pitch (Inch) | 1/8 |
| Minimum Tolerance (Decimal Inch) | 0.1255 |
| Maximum Tolerance (Decimal Inch) | 0.1265 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Drill Size (Wire) | #30 |
