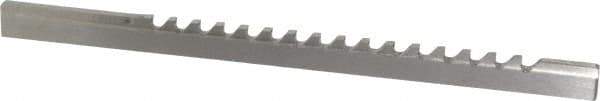

Value Collection - 1/8" Keyway Width, Style B, Keyway Broach - High Speed Steel, Bright Finish, 3/16" Broach Body Width, 19/64" to 1-11/16" LOC, 6-3/4" OAL
Item #: 00300251
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 1/8 |
| Broach Style | B |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Broach Body Width (Inch) | 3/16 |
| Minimum Length of Cut (Inch) | 19/64 |
| Maximum Length of Cut (Inch) | 1-11/16 |
| Overall Length (Inch) | 6-3/4 |
| Minimum Keyway Width Tolerance (Decimal Inch) | 0.1252 |
| Maximum Keyway Width Tolerance (Decimal Inch) | 0.1262 |
| Number of Shims Required | 1 |
| Material Application | Ferrous and Non-Ferrous Metals |
