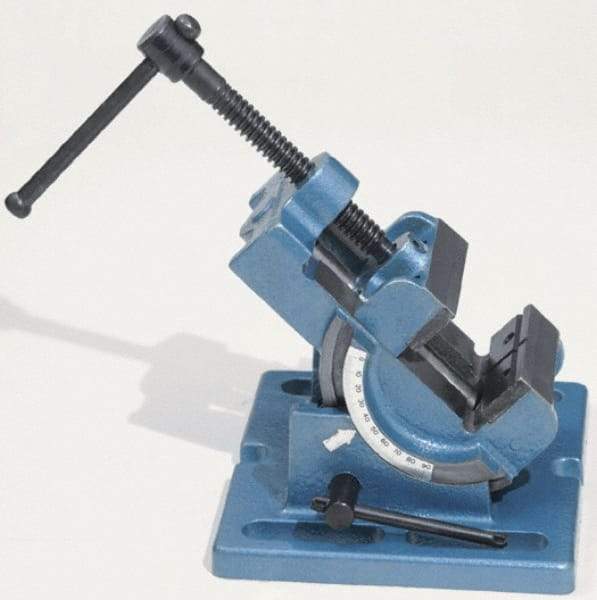

Palmgren - 3" Jaw Opening Capacity x 1-1/8" Throat Depth, Angle Drill Press Vise - 3" Wide Jaw, Stationary Base, Rapid Action, 6-1/2" OAL x 4" Overall Height
Item #: 00267146
Brand: Palmgren
Model #: 9611250
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with an angle orientation feature a hand-tightening mechanism to lock the angle from 0 to 90 degrees.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Rapid action spindles have a quick-action mechanism or a split nut design to rapidly open, close or clamp for repetitive operations.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 3 |
| Jaw Opening Capacity (Inch) | 3 |
| Jaw Opening Capacity (Decimal Inch) | 3.0000 |
| Throat Depth (Inch) | 1-1/8 |
| Throat Depth (Decimal Inch) | 1.1250 |
| Orientation Type | Angle |
| Base Motion Type | Stationary |
| Spindle Operation Type | Rapid Action |
| Overall Length (Inch) | 6-1/2 |
| Overall Height (Inch) | 4 |
| Base Length (Inch) | 6-9/16 |
| Base Width (Inch) | 6-9/16 |
| Model Number | AVC25 |
| Jaw Style | Grooved |
