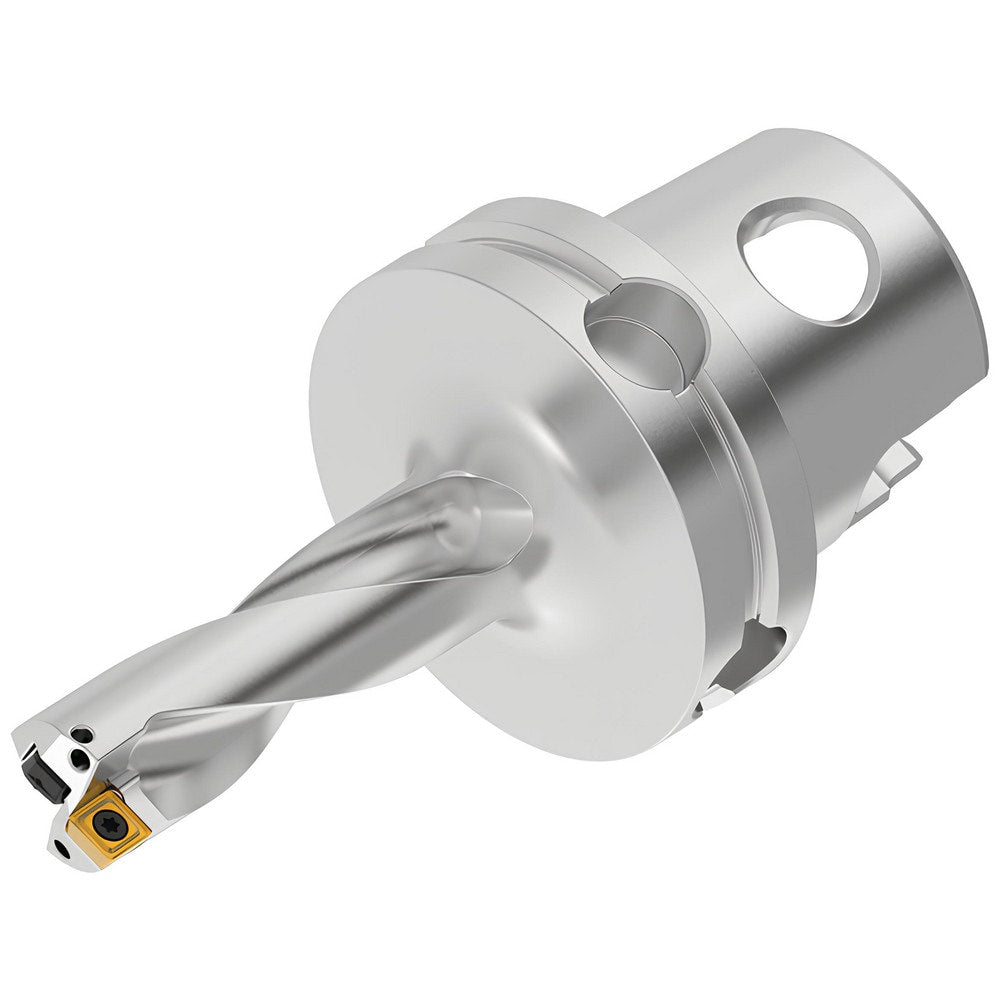

Indexable Insert Drill: DFPR0875R3KM50, 23.22 mm Max Dia, 66.68 mm Max Depth, 3xD, 50.00 mm Shank Dia
Item #: 04976130
Brand: Kennametal
Model #: 7031106
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 23.22 |
| Maximum Drill Diameter (Decimal Inch) | 0.9144 |
| Maximum Drill Depth (Inch) | 2-5/8 |
| Maximum Drill Depth (Decimal Inch) | 2.6250 |
| Maximum Drill Depth (mm) | 66.68 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-31/32 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 070305; 080304 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.1448 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 2.6250 |
| Flute Length (mm) | 80.68 |
| Body Length | 130.62 |
| Body Length (Decimal Inch) | 3.8850 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 31.95 |
| Modular Connection Size | KM50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1120x0.1100; 0.3170x0.1100 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR080304__I; DFPR070305__O |
| Collar Diameter (Decimal Inch) | 0.8461 |
| Collar Diameter (mm) | 21.49 |
| Insert Lock Screw | M2.5-0.45x5.7T8 |
| Coolant Through | Yes |
