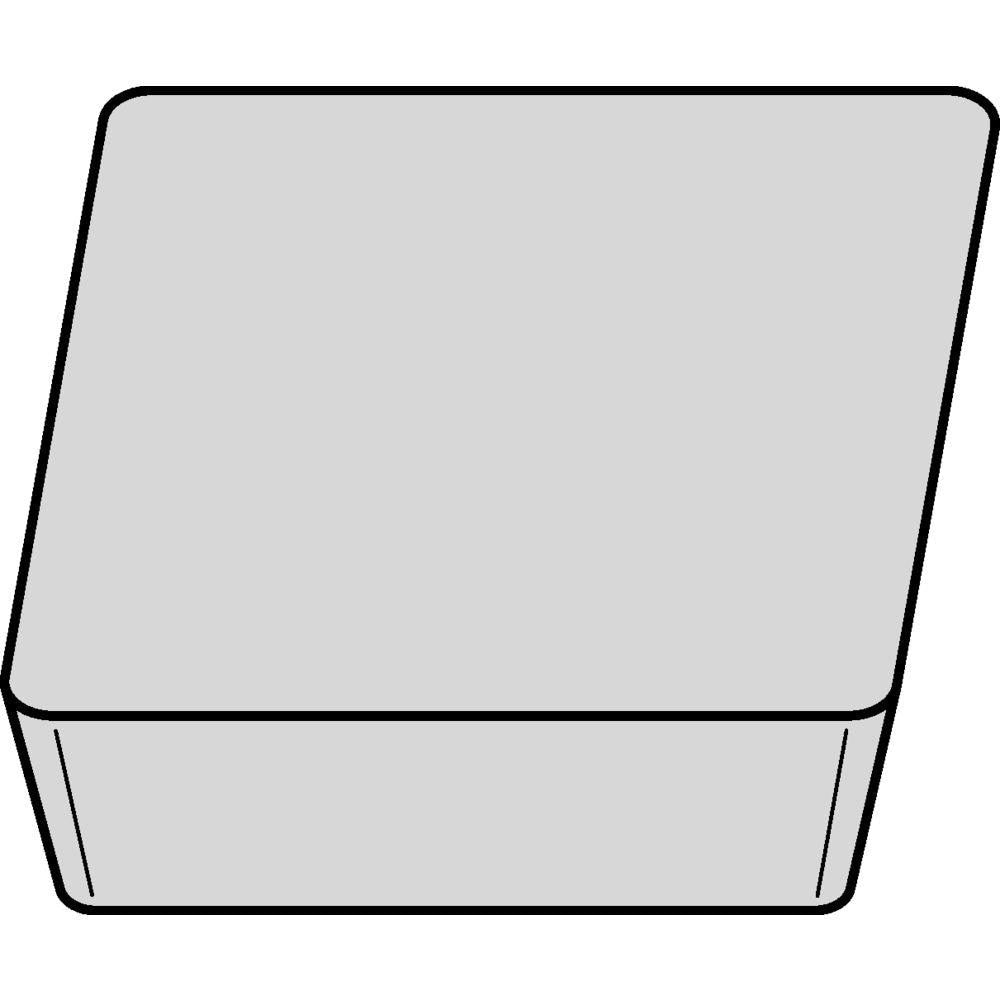

Turning Insert: CPG422 KCP25C, Carbide
Item #: 84458017
Brand: Kennametal
Model #: 7088247
Product Specifications
| ANSI Insert Code | CPG |
| ISO Insert Code | CPG |
| Relief Angle | 11.000 |
| Insert Style | CPG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | Kendex™ Positive Inserts |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80° |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | P |
| Tolerance Code | G |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5077 |
| Insert Length (mm) | 12.90 |
| Chip Breaker | None |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.70 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 422 |
| Country of Origin | UNITED STATES |
