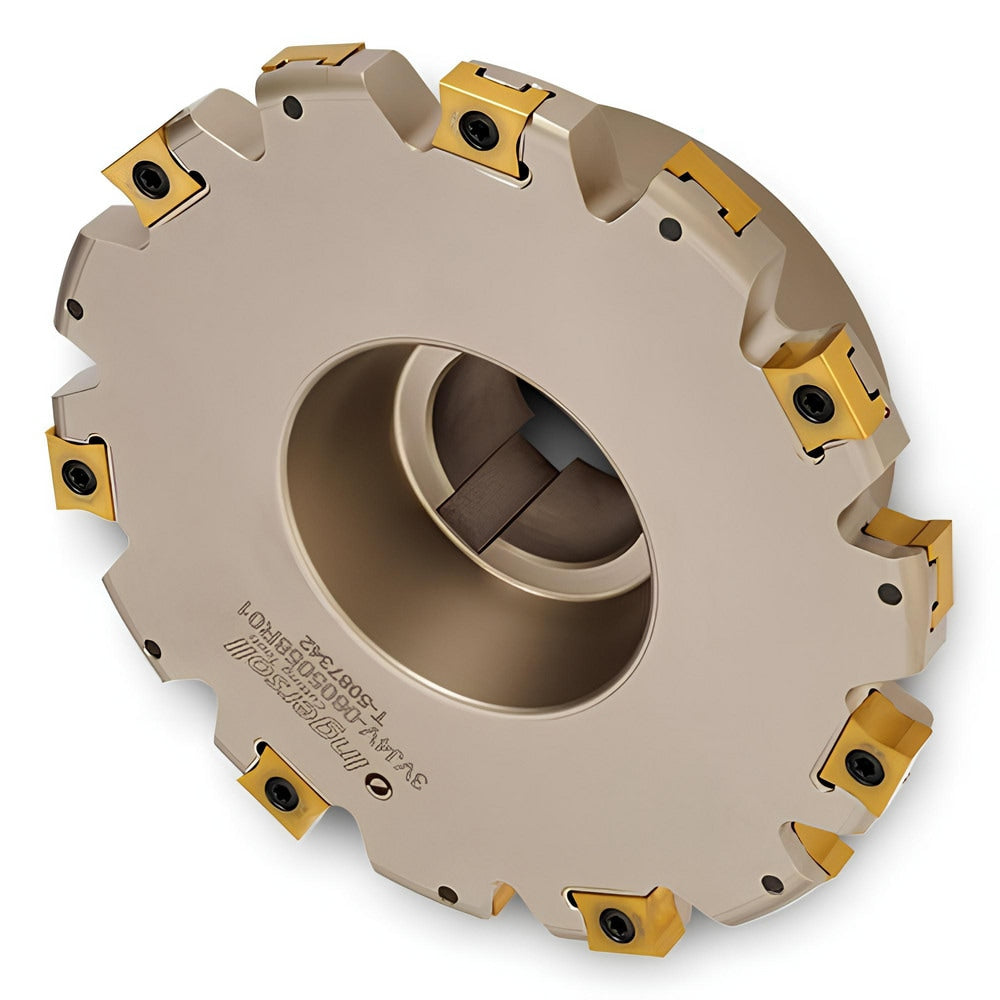

Brand: Ingersoll Cutting Tools / Part #: 2914005
Item #: 98631070
Brand: Ingersoll Cutting Tools
Model #: 2914005
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 1.2900 |
| Hole Diameter (Inch) | 1 |
| Cutter Diameter (Inch) | 5 |
| Shank Diameter (Decimal Inch) | 2.2500 |
| Shank Length (Decimal Inch) | 1.3125 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 14 |
| Compatible Insert Style | IHX |
| Compatible Insert Size Code | 312 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Hub Diameter (Inch) | 2-1/4 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Body Diameter (mm) | 127.00 |
| Cutter Body Width (Decimal Inch) | 0.1870 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-05018D3R01 |
| Overall Length (Inch) | 1-1/2 |
| Number Of Teeth | 14 |
| Coolant Through | No |
| Complete Insert Compatibility | INX312.. |
| Coating/Finish | Coated |
