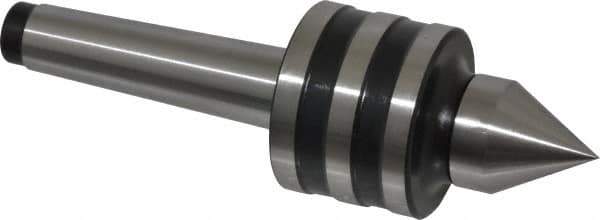

Interstate - MT2 Taper Shank, 1-39/64" Head Diam 756 Lb Capacity Live Center - 1-1/4" Head Length, 15/16" Point Diam, 1-11/32" Point Len, 260 Lb Max Workpc, 5-21/64" OAL, Standard Point
Item #: 00098129
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 260.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 15/16 |
| Point Diameter (Decimal Inch) | 0.9375 |
| Point Length (Inch) | 1.3438 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 756.00 |
| Head Diameter (Inch) | 1-39/64 |
| Head Length (Inch) | 1-1/4 |
| Shank Length (Inch) | 2-3/4 |
| Overall Length (Inch) | 5-21/64 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Material | Steel |
| Carbide-Tipped | No |
