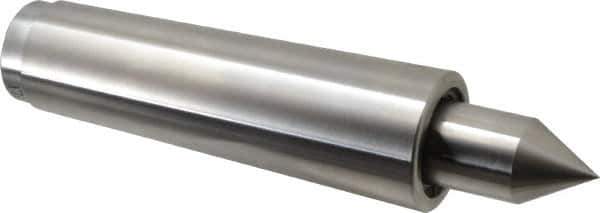

Concentric - MT5 Taper Shank, 3,750 Lb Capacity Live Center - 1,500 Max RPM, 1.075" Point Diam, 2" Point Len, 1,450 Lb Max Workpc, Standard Point
Item #: 00094656
Brand: Concentric
Model #: 17105
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 1450.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.0750 |
| Point Length (Decimal Inch) | 2.0000 |
| Accuracy (Decimal Inch) | 0.000100 |
| Load Capacity (Lb.) | 3750.00 |
| Thrust Load (Lb.) | 1088.00 |
| Point to Gauge Line (Decimal Inch) | 2.8800 |
| Included Angle | 60.00 |
| Maximum RPM | 1500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
