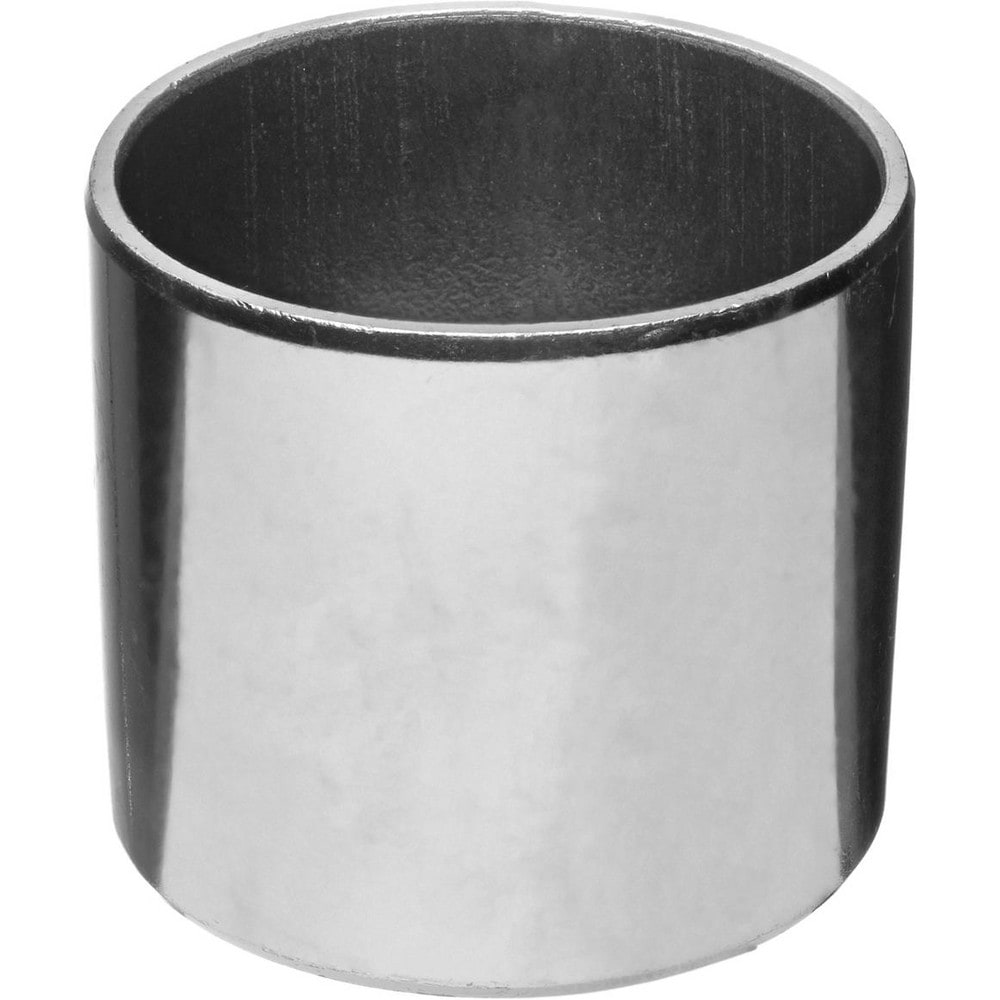

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 3-47/64; Outside Diameter (Decimal Inch - 4 Decimals): 3.7344; Inside Diameter (Inch): 3-35/64; Inside Diameter (Decimal Inch): 3.5469
Item #: 76825959
Brand: USA Industrials
Model #: ZUSAB-PB-272
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 3-47/64 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 3.7344 |
| Inside Diameter (Inch) | 3-35/64 |
| Inside Diameter (Decimal Inch) | 3.5469 |
| Material | Steel |
| Overall Length (Inch) | 2-3/8 |
| Overall Length (Decimal Inch) | 2.3750 |
| Static Load Capacity | 1804593.54 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 95.0350 |
| Housing Bore Limits Mininum | 95.0000 |
| Inside Diameter (mm) | 90.0000 |
| Overall Length (mm) | 60 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
