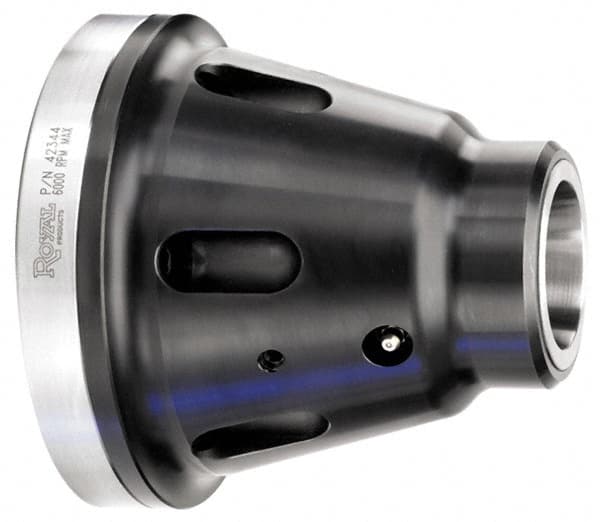

1-5/8″ Max Capacity A2-8 Spindle 16C Lathe Collet Chuck Drawbar Actuator, 3-1/4″ Nose Diam, 7-1/4″ OAL, 0.0002″ TIR, 6.23″ Projection
Item #: 00075309
Brand: Royal Products
Model #: 42342
Product Specifications
| Collet System | 16C |
| Spindle Size | A2-8 |
| Actuator Type | Drawbar |
| Maximum Collet Capacity (Inch) | 1-5/8 |
| Projection (Decimal) | 6.2300 |
| Overall Length (Decimal) | 7.2500; 7.25 in |
| Through Coolant | Nonthrough Coolant |
| Maximum RPM | 4500 RPM |
| Nose Diameter (Decimal) | 3.2500 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
