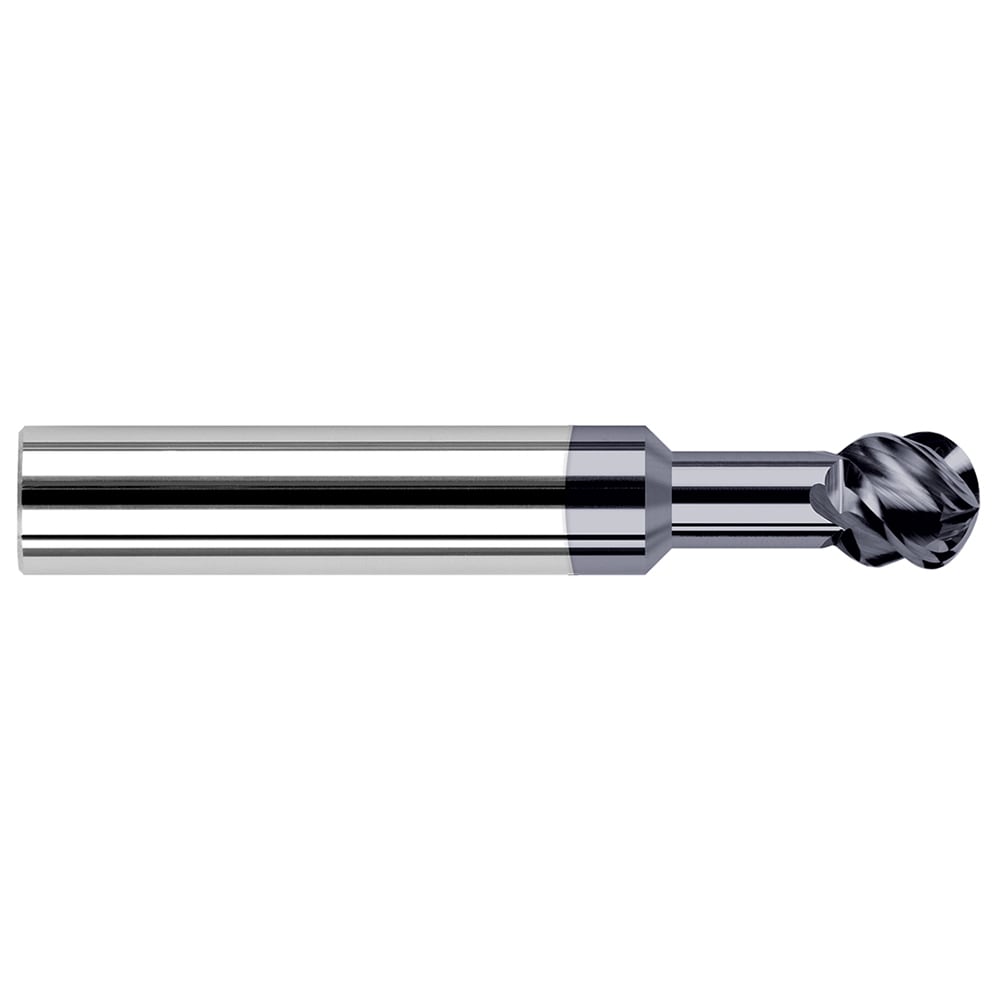

1/2" Diam 270° Wrap Angle 0.427" LOC 4-Flute AlTiN Finish Undercut End Mill
Item #: 52582418
Brand: Harvey Tool
Model #: 994732-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4270 |
| Overall Length (Inch) | 3 |
| Radius | 0.2500 |
| Number Of Flutes | 4 |
| Neck Length (Decimal Inch) | 1.0000 |
| Neck Diameter (Decimal Inch) | 0.3230 |
| Coating/Finish | AlTiN |
| Helix Angle | 45 |
| Shank Diameter (Inch) | 1/2 |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Wrap Angle (Degrees) | 270 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Single Or Double End | Single |
| UNSPSC Code | 27112803 |
