VRA Power Chuck

Non through-hole power chuck for vertical lathe (adapter included)
  • The front protection of slide way.
  • Suitable for vertical lathe.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Jaws Plunger
Stroke
(mm)		 Jaw stroke
(In Dia.)
(mm)		 Max. Pull
Force
(kgf)		 Max.
Gripping
Force
(kgf)		 Max.
Operating
Pressure
(kgf / cm²)		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 Moment Of
Inertia
I
(kg．m²)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw		 Gripping
O.D. Range
(mm)		 SPEC Part Number Price Each
3 30 16 5302 14276 35.7 3000 67.7 0.774 MS150C HJ12-1 HC12-1 Ø32-Ø304 V-212RA6 Call or Email
3 30 16 5302 14276 35.7 3000 65.6 0.764 MS150C HJ12-1 HC12-1 Ø32-Ø304 V-212RA8 Call or Email
3 30 16 5302 14276 35.7 3000 74.1 0.902 MS150C HJ12-1 HC12-1 Ø32-Ø304 V-212RA11 Call or Email
3 35 18.7 9585 25798 35.7 2800 120.4 2.146 MS200C HJ15-1 HC15-1 Ø68-Ø381 V-215RA8 Call or Email
3 35 18.7 9585 25798 35.7 2800 113.4 2.016 MS200C HJ15-1 HC15-1 Ø68-Ø381 V-215RA11 Call or Email
3 35 18.7 9585 25798 35.7 2800 133 2.572 MS200C HJ15-1 HC15-1 Ø68-Ø381 V-215RA15 Call or Email
3 35 18.7 9585 25798 35.7 2300 144.5 3.507 MS200C HJ15-1 HC15-1 Ø78-Ø450 V-218RA8 Call or Email
3 35 18.7 9585 25798 35.7 2300 137.5 3.43 MS200C HJ15-1 HC15-1 Ø78-Ø450 V-218RA11 Call or Email
3 35 18.7 9585 25798 35.7 2300 157.5 3.945 MS200C HJ15-1 HC15-1 Ø78-Ø450 V-218RA15 Call or Email
3 35 16 9075 28450 33.7 1940 198 6.46 MS200C HJ24-1 HC24-1 Ø65-Ø530 V-221RA8 Call or Email
3 35 16 9075 28450 33.7 1940 190 6.35 MS200C HJ24-1 HC24-1 Ø65-Ø530 V-221RA11 Call or Email
3 35 16 9075 28450 33.7 1940 184 6.28 MS200C HJ24-1 HC24-1 Ø65-Ø530 V-221RA15 Call or Email
3 35 16 9075 28450 33.7 1760 240 10.54 MS200C HJ24-1 HC24-1 Ø152-Ø610 V-224RA8 Call or Email
3 35 16 9075 28450 33.7 1760 233 10.44 MS200C HJ24-1 HC24-1 Ø152-Ø610 V-224RA11 Call or Email
3 35 16 9075 28450 33.7 1760 227 10.36 MS200C HJ24-1 HC24-1 Ø152-Ø610 V-224RA15 Call or Email
3 35 18.7 9585 25798 35.7 1060 390 30.9 MS200C HJ24-1 HC32-1 Ø100-Ø810 V-232RA11 Call or Email
3 35 18.7 9585 25798 35.7 1060 383 30.82 MS200C HJ24-1 HC32-1 Ø100-Ø810 V-232RA15 Call or Email
3 35 18.7 9585 25798 35.7 1060 419 32.69 MS200C HJ24-1 HC32-1 Ø100-Ø810 V-232RA20 Call or Email
4 30 16 5302 14276 35.7 2500 68 0.792 MS150C HJ12-1 HC12-1 Ø45-Ø304 VIT-212RA8 Call or Email
4 35 18.7 9585 25798 35.7 2000 141.5 3.522 MS200C HJ15-1 HC15-1 Ø78-Ø450 VIT-218RA11 Call or Email
4 35 18.7 9075 28450 33.7 1520 255 11.3 MS200C HJ24-1 HC24-1 Ø152-Ø610 VIT-224RA11 Call or Email
4 35 18.7 9075 28450 33.7 1520 240 11.02 MS200C HJ24-1 HC24-1 Ø152-Ø610 VIT-224RA15 Call or Email
4 35 18.7 9585 25798 35.7 920 414 32.68 MS200C HJ24-1 HC32-1 Ø100-Ø810 VIT-232RA11 Call or Email
4 35 18.7 9585 25798 35.7 920 399 32.4 MS200C HJ24-1 HC32-1 Ø100-Ø810 VIT-232RA15 Call or Email

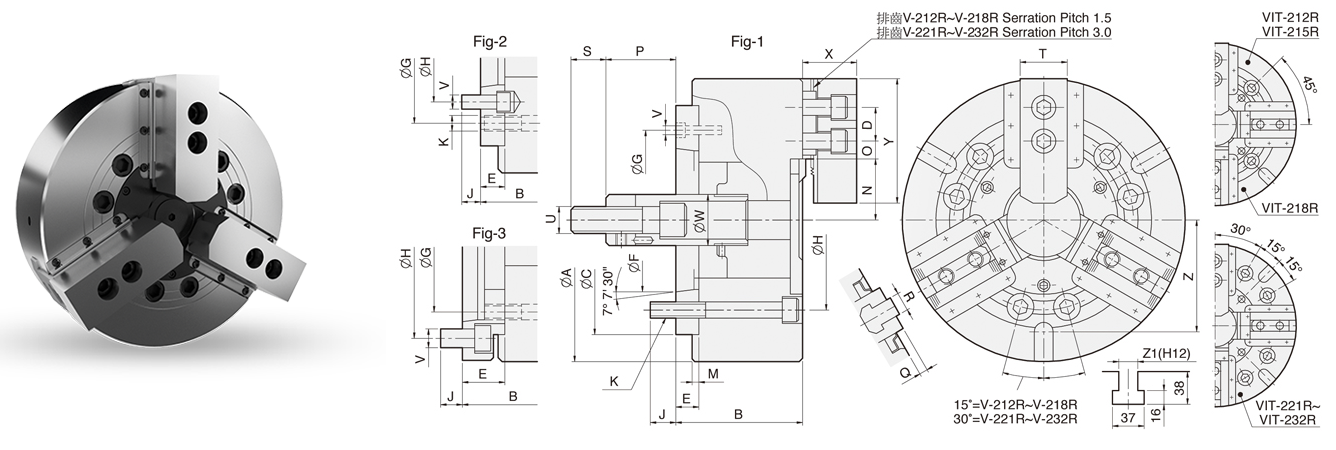

A B C
(H6)		 D E F G H J K M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U V W X Y Z Z1 Reference DIM Part Number Price Each
304 125 220 30 25 106.375 171.45 133.35 18 6-M16 6 64 45.75 12.75 138 108 5.5 18 36 50 M20x2.5 6-M12 50 54.5 130 --- --- Fig2 V-212RA6 Call or Email
304 118 220 30 18 139.719 190 171.45 24 6-M16 6 64 45.75 12.75 145 115 5.5 18 36 50 M20x2.5 3-M8 50 54.5 130 --- --- Fig1 V-212RA8 Call or Email
304 150 220 30 50 196.869 171.45 235 28 6-M16 6 64 45.75 12.75 113 83 5.5 18 36 50 M20x2.5 6-M20 50 54.5 130 --- --- Fig3 V-212RA11 Call or Email
381 141 300 43 33 139.719 235 171.45 24 6-M20 6 78 49.75 24.25 71 36 5.5 25.5 55 62 M30x3.5 6-M16 60 66.5 165 --- --- Fig2 V-215RA8 Call or Email
381 130 300 43 22 196.869 260 235 32 6-M20 6 78 49.75 24.25 82 47 5.5 25.5 55 62 M30x3.5 3-M10 60 66.5 165 --- --- Fig1 V-215RA11 Call or Email
381 165 300 43 57 285.775 235 330.2 29 6-M20 6 78 49.75 24.25 47 12 5.5 25.5 55 62 M30x3.5 6-M24 60 66.5 165 --- --- Fig3 V-215RA15 Call or Email
450 141 300 43 33 139.719 235 171.45 24 6-M20 6 92 70.75 24.25 59 24 5.5 25.5 55 62 M30x3.5 6-M16 60 66.5 165 158 22 Fig2 V-218RA8 Call or Email
450 130 300 43 22 196.869 260 235 32 6-M20 6 92 70.75 24.25 70 35 5.5 25.5 55 62 M30x3.5 3-M10 60 66.5 165 158 22 Fig1 V-218RA11 Call or Email
450 165 300 43 57 285.775 235 330.2 29 6-M20 6 92 70.75 24.25 35 0 5.5 25.5 55 62 M30x3.5 6-M24 60 66.5 165 158 22 Fig3 V-218RA15 Call or Email
530 154 380 60 33 139.719 330.2 171.45 24 6-M24 6 87 93.5 27.5 64 29 9 25 55 64 M30x3.5 9-M16 60 77 180 155 22 Fig2 V-221RA8 Call or Email
530 148 380 60 27 196.869 330.2 235 30 6-M24 6 87 93.5 27.5 70 35 9 25 55 64 M30x3.5 6-M20 60 77 180 155 22 Fig2 V-221RA11 Call or Email
530 148 380 60 27 285.775 330.2 330.2 33 6-M24 6 87 93.5 27.5 70 35 9 25 55 64 M30x3.5 3-M12 60 77 180 155 22 Fig1 V-221RA15 Call or Email
610 154 380 60 33 139.719 330.2 171.45 24 6-M24 6 126.5 93.5 27.5 64 29 9 25 55 64 M30x3.5 9-M16 60 77 180 165.1 22 Fig2 V-224RA8 Call or Email
610 148 380 60 27 196.869 330.2 235 30 6-M24 6 126.5 93.5 27.5 70 35 9 25 55 64 M30x3.5 6-M20 60 77 180 165.1 22 Fig2 V-224RA11 Call or Email
610 148 380 60 27 285.775 330.2 330.2 33 6-M24 6 126.5 93.5 27.5 70 35 9 25 55 64 M30x3.5 3-M12 60 77 180 165.1 22 Fig1 V-224RA15 Call or Email
810 156 380 80 27 196.869 330.2 235 30 6-M24 6 104.8 196.5 25.5 47 12 5 25 55 74 M30x3.5 6-M20 60 93 210 165.1 22 Fig2 V-232RA11 Call or Email
810 156 380 80 27 285.775 330.2 330.2 33 6-M24 6 104.8 196.5 25.5 47 12 5 25 55 74 M30x3.5 3-M12 60 93 210 165.1 22 Fig1 V-232RA15 Call or Email
810 187 520 80 58 412.775 330.2 463.6 35 6-M24 6 104.8 196.5 25.5 16 -19 5 25 55 74 M30x3.5 6-M24 60 93 210 165.1 22 Fig3 V-232RA20 Call or Email
304 118 220 30 18 139.719 190 171.45 24 4-M16 6 64 45.75 12.75 145 115 5.5 18 36 50 M20x2.5 4-M8 50 54.5 130 --- --- Fig1 VIT-212RA8 Call or Email
450 130 300 43 22 196.869 260 235 32 4-M20 6 92 70.75 24.25 70 35 5.5 25.5 55 62 M30x3.5 4-M10 60 66.5 165 158 22 Fig1 VIT-218RA11 Call or Email
610 162 380 60 41 196.869 330.2 235 30 8-M24 6 126.5 93.5 27.5 70 35 9 25 56 64 M30x3.5 6-M20 60 77 180 165.1 22 Fig2 VIT-224RA11 Call or Email
610 148 380 60 27 285.775 330.2 330.2 33 8-M24 6 126.5 93.5 27.5 70 35 9 25 55 64 M30x3.5 4-M12 60 77 180 165.1 22 Fig1 VIT-224RA15 Call or Email
810 170 380 80 41 196.869 330.2 235 30 8-M24 6 104.8 196.5 25.5 47 12 5 25 56 74 M30x3.5 6-M20 60 93 210 200 22 Fig2 VIT-232RA11 Call or Email
810 156 380 80 27 285.775 330.2 330.2 33 8-M24 6 104.8 196.5 25.5 47 12 5 25 55 74 M30x3.5 4-M12 60 93 210 200 22 Fig1 VIT-232RA15 Call or Email
