Square Toolholders

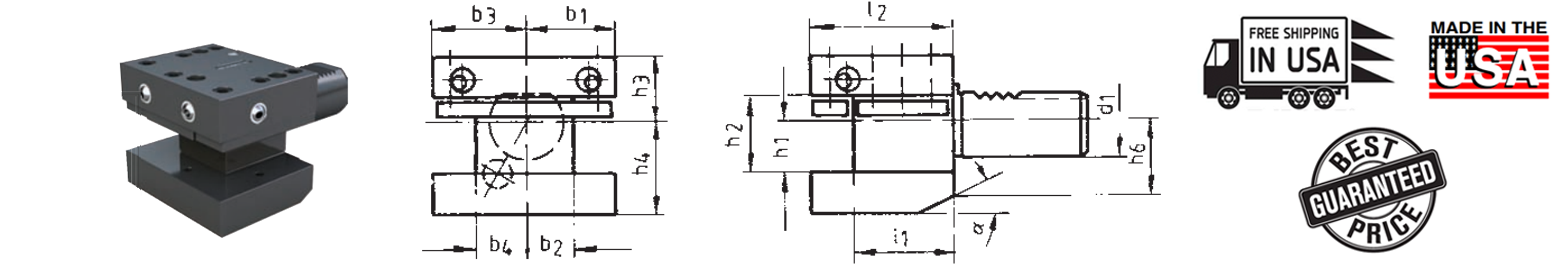

Square Toolholder – Form D1

Inch sizes can be ordered online. For mm size please call to order.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

d1	h1 in	h1 mm	b1	b2	b3	b4	h2	h3	h4	h8	L1	L2	α	Part Number
25	5/8	16	33	19	33	19	22	25	30	25	34	48	30	CNC86 41.2516
30	3/4	20	35	17	41	23	29	28	38	30	42	60	25	CNC86 41.3020
40	1	25	42.5	20.5	47.5	25.5	34	32.5	48	42	50	72	30	CNC86 41.4025
50	1-1/4	32	50	25.5	55	30.5	41	35	60		60	85		CNC86 41.5032
60	1-1/4	32	57.5	32.5	57.5	32.5	41	42.5	62.5		85	110		CNC86 41.6032
80	1-1/2	40	76	41	76	41	53	55	80		105	140		CNC86 41.8040

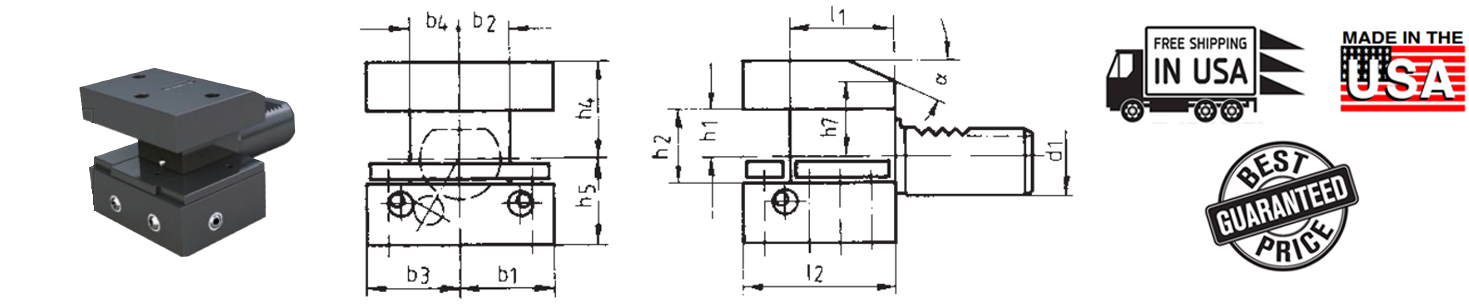

Square Toolholder Inverted
Form D2

d1	h1 in	h1 mm	b1	b2	b3	b4	h2	h4	h5	h7	L1	L2	α	Part Number
25	5/8	16	33	19	33	19	22	30	25	25	34	48	30	CNC86 42.2516
30	3/4	20	35	17	41	23	29	38	35	28	42	60	25	CNC86 42.3020
40	1	25	42.5	20.5	47.5	25.5	34	48	42.5	32.5	50	72	30	CNC86 42.4025
50	1-1/4	32	50	25.5	55	30.5	41	60	50		60	85		CNC86 42.5032
60	1-1/4	32	57.5	32.5	57.5	32.5	41	62.5	62.5		85	110		CNC86 42.6032
80	1-1/2	40	76	41	76	41	53	80	80		105	140		CNC86 42.8040
