HARD JAWS - SQUARE SERRATED KEY TYPE

SQUARE KEY SERRATED
HARD JAWS
FEATURES:
  • Designed for first operation roughing, expect standard runout between 0.005-0.010
  • Reversible-suitable for OD & ID workholding.
  • XTRA BITE -very aggressive bite. Has conical teeth for extra gripping power and ground body to provide improved runout.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

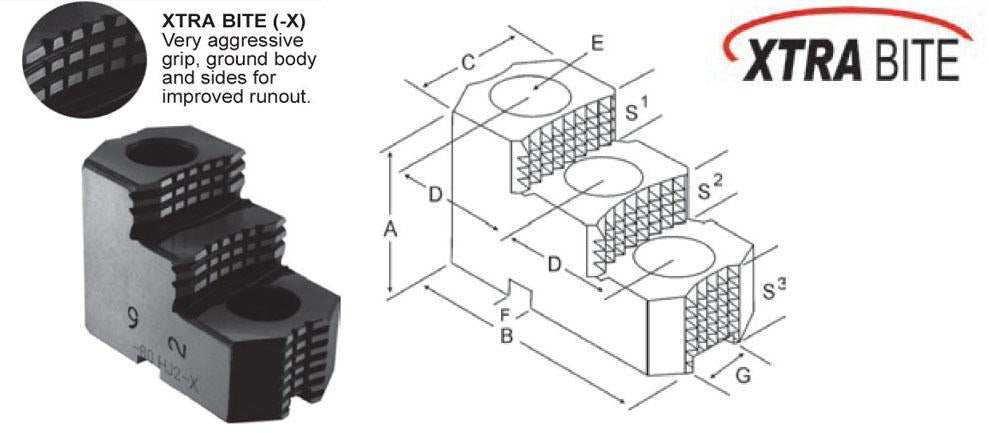

Critical Dimensions
GROUP Chuck Size Groove Width
G		 Tongue Width
F		 Screw Size
E		 Hole Space
D		 Tap Hole Width Inch
C		 OAL Inch
B		 Height Inch
A		 No.
of
Holes		 No.
of
Steps		 Top
Step Ht
S1		 Mid
Step Ht
S2		 Bot
Step Ht
S3		 Part
Number
SI-07-1/2-17 12 0.750 0.994 1/2 1.750 5/16-18 1.750 4.875 2.469 2 2 0.650 0.650 1.169 SP-120HJ2-X
SI-07-5/8-17 12 0.750 0.994 5/8 1.750 5/16-18 1.750 4.875 2.469 2 2 0.650 0.650 1.169 SP-125HJ2-X
SI-10-3/4-25 15 & UP 1.000 1.488 3/4 2.500 3/8-16 2.500 5.500 3.469 2 2 0.950 0.950 1.569 SP-150HJ2-X
