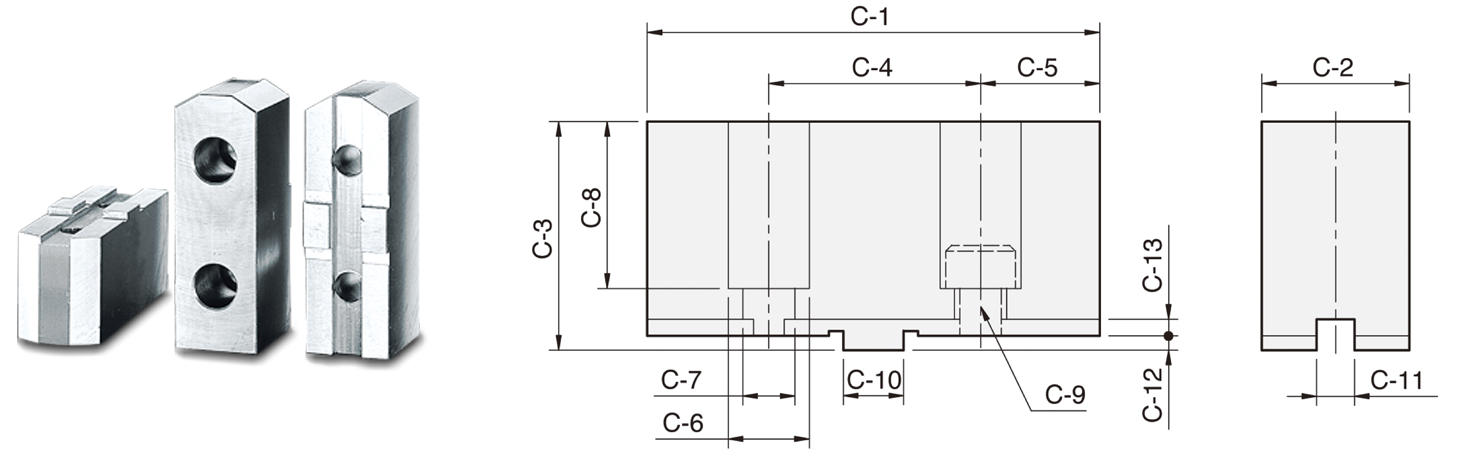

SKC Soft Jaws

Soft jaw for strong scroll chuck

Soft jaws for strong scroll chuck.
Manufactured in special specification.

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

C-1	C-2	C-3	C-4	C-5	C-6	C-7	C-8	C-9	C-10	C-11	C-12	C-13	Matching Chuck	3 Jaw Weight (kg)	SPEC Part Number	Price Each
52	19	30	24	14	11	7	21	M6	9.53	7.94	2.5	3	SK-4	0.45	SKC04	Call or Email
73	26	37	38	17.5	14	8.5	27	M8	12.68	7.94	3	3.5	SK-6, KD-6"	1.5	SKC06	Call or Email
95	31	48	44.5	25.25	17	11	35	M10	12.68	7.94	3	3.5	SK-7, SK-8, KD-8", KA-8"	2.7	SKC07	Call or Email
110	37	48	54	28	19	13	34	M12	19.03	12.7	3	3.5	SK-9, SK-10, KD-10", KA-10"	3.7	SKC09	Call or Email
125	40	54	63.5	30.75	19	13	40.5	M12	19.03	12.7	3	3.5	SK-12, KD-12", KA-12"	4.9	SKC12	Call or Email
160	50	70	76.2	41.9	25	17	48	M16	19.03	12.7	6	3.5	SK-16	11	SKC16	Call or Email
155	59	86	76.2	52.9	32	22	66	M20	19.03	12.7	6	4	HB4-2P	19.2(4PC)	HE2486	Call or Email
