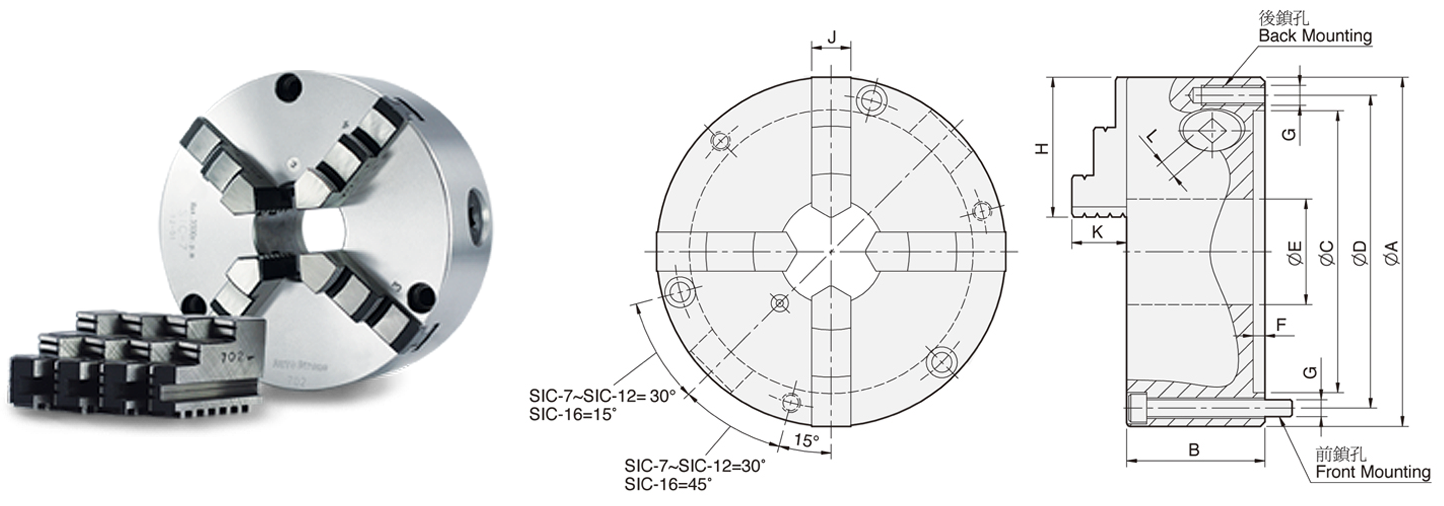

SIC Series Chuck

4-jaw scroll chuck plain back, solid jaws (front and back mounted)
  • Gripping of square or octagonal workpieces could fit into central line automatically.
  • SIC have high stability in gripping thin tube work piece.
  • The specification is the same as SC type.
  • The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
A B C D E F G
Back / Front		 H J K L Allowable Handle Torque
(kgf．m)		 Gripping Force
(kgf)		 Max. Speed
(r.p.m.)		 Weight
(kg)		 Moment Of
Inertia
I
(kg ．m²)		 Gripping Range
O.D. Range / I.D. Range		 Part Number Price Each
192 76.5 155 172 58 5.5 3-M10 / 3-M10x80 77 21.5 29.4 11 11.0 2500 2000 14.8 0.06 Ø4-Ø180 / Ø56-Ø170 SIC-7 Call or Email
232 84 190 210 70 6 3-M12 / 3-M12x90 87 24 35.6 12 15.0 3000 2000 23.2 0.16 Ø5-Ø220 / Ø62-Ø210 SIC-9 Call or Email
310 96 260 285 105 7 3-M12 / 3-M12x110 110 30 45.6 14 21.0 4200 1800 47 0.58 Ø10-Ø300 / Ø86-Ø290 SIC-12 Call or Email
405 122 345 375 160 8.7 — / 6-M14x130 146 42 56.3 15 25.0 4500 1500 107 1.72 Ø30-Ø380 / Ø110-Ø360 SIC-16 Call or Email
