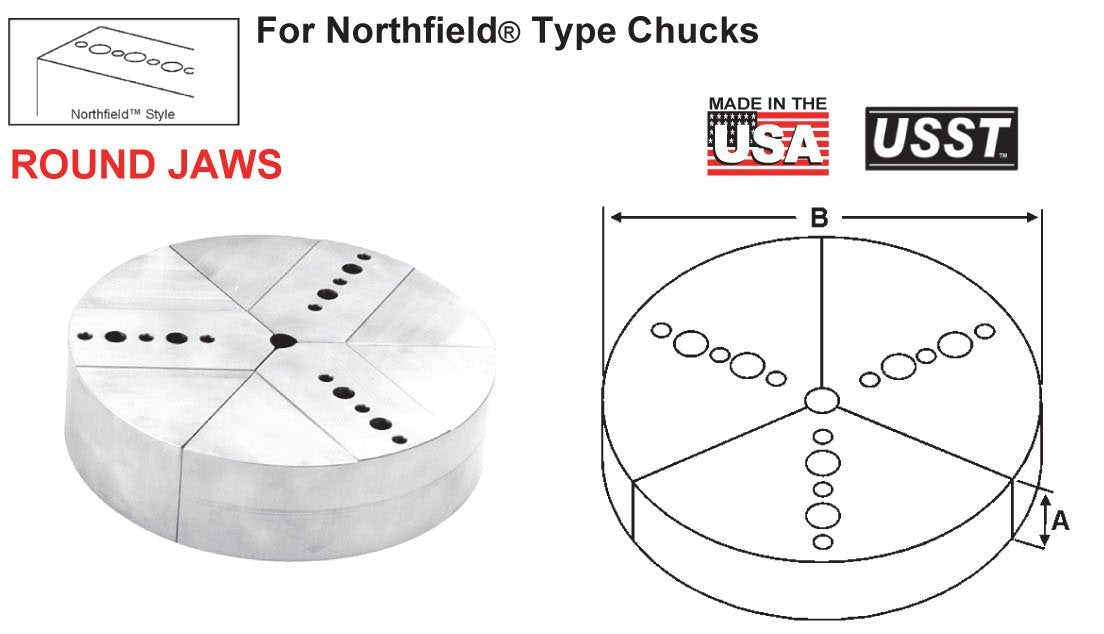

ROUND JAWS - NORTHFIELD® TYPE CHUCKS

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

					ALUMINUM			STEEL
Chuck Dia. Inch	Jaw Dia. B	Hght Inch A	No. of Holes	No. of Pins	Northfield Part Number	Part Number	Northfield Part Number	Part Number
3" (300)	3"	0.75	1	2	AL-3-3-3/4	RNF-3075A	ST-3-3-3/4	RNF-3075S
		1.00	1	2	AL-3-3-1	RNF-3100A	ST-3-3-1	RNF-3100S
		1.50	1	2	AL-3-3-1-1/2	RNF-3150A	ST-3-3-1-1/2	RNF-3150S
4" (400)	4"	1.00	2	3	AL-3-4-1	RNF-4100A	ST-3-4-1	RNF-4100S
		2.00	2	3	AL-3-4-2	RNF-4200A	ST-3-4-2	RNF-4200S
		3.00	2	3	AL-3-4-3	RNF-4300A	ST-3-4-3	RNF-4300S
6" (600)	6"	1.00	4	5	AL-3-6-1	RNF-6100A	ST-3-6-1	RNF-6100S
		2.00	4	5	AL-3-6-2	RNF-6200A	ST-3-6-2	RNF-6200S
		3.00	4	5	AL-3-6-3	RNF-6300A	ST-3-6-3	RNF-6300S
7" (700)	7"	2.00	2	2	AL-3-7-2	RNF-7200A	ST-3-7-2	RNF-7200S
		3.00	2	2	AL-3-7-3	RNF-7300A	ST-3-7-3	RNF-7300S
		4.00	2	2	AL-3-7-4	RNF-7400A	ST-3-7-4	RNF-7400S
8" (800)	8"	2.00	2	3	AL-3-8-2	RNF-8200A	ST-3-8-2	RNF-8200S
		3.00	2	3	AL-3-8-3	RNF-8300A	ST-3-8-3	RNF-8300S
		4.00	2	3	AL-3-8-4	RNF-8400A	ST-3-8-4	RNF-8400S
		6.00	2	3	-	RNF-8600A	-	-
10" (1000)	10"	2.00	3	4	AL-3-10-2	RNF-10200A	ST-3-10-2	RNF-10200S
		3.00	3	4	AL-3-10-3	RNF-10300A	ST-3-10-3	RNF-10300S
		4.00	3	4	AL-3-10-4	RNF-10400A	ST-3-10-4	RNF-10400S

Round Jaw Material: ALUMINUM-6061-T6 Bar Stock, CAST IRON-Gray, STEEL-1018
* denotes non-stock item. Please allow 1 week manufacturing time.
