N-200A Power Chuck

3-jaw through-hole power chuck
(adapter included)
  • More large bore : The largest bore in wedge type power operated chucks.
  • Model N-200A chucks are assembled with adaptor for ASA B5.9 type A spindles.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Through-Hole
(mm)		 Plunger
Stroke
(mm)		 Jaw stroke
(In Dia.)
(mm)		 Max. Pull
Force
(kgf)		 Max.
Gripping
Force
(kgf)		 Max.
Operating
Pressure
(kgf / cm²)		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 Moment Of
Inertia
I
(kg．m²)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw		 Gripping
O.D. Range
(mm)		 SPEC Part Number Price Each
Ø33 10 5.4 1784 3671 28.5 7000 7.8 0.020 M1036 HJ05 HC05 Ø6-Ø135 N-205A4 Call or Email
Ø33 10 5.4 1784 3671 28.5 7000 9 0.023 M1036 HJ05 HC05 Ø6-Ø135 N-205A5 Call or Email
Ø45 12 5.5 2243 5812 28.5 6000 15.5 0.065 M1246 HJ06 HC06 Ø15-Ø169 N-206A4 Call or Email
Ø45 12 5.5 2243 5812 28.5 6000 14.7 0.062 M1246 HJ06 HC06 Ø15-Ø169 N-206A5 Call or Email
Ø45 12 5.5 2243 5812 28.5 6000 17.3 0.073 M1246 HJ06 HC06 Ø15-Ø169 N-206A6 Call or Email
Ø52 16 7.4 3558 9075 26.5 5000 25.8 0.190 M1552 HJ08 HC08 Ø20-Ø210 N-208A5 Call or Email
Ø52 16 7.4 3558 9075 26.5 5000 25 0.184 M1552 HJ08 HC08 Ø20-Ø210 N-208A6 Call or Email
Ø52 16 7.4 3558 9075 26.5 5000 29.3 0.217 M1552 HJ08 HC08 Ø20-Ø210 N-208A8 Call or Email
Ø75 19 8.8 4385 11319 27.5 4200 41 0.370 M1875 HJ10 HC10 Ø25-Ø254 N-210A6 Call or Email
Ø75 19 8.8 4385 11319 27.5 4200 38 0.340 M1875 HJ10 HC10 Ø25-Ø254 N-210A8 Call or Email
Ø75 19 8.8 4385 11319 27.5 4200 48.4 0.436 M1875 HJ10 HC10 Ø25-Ø254 N-210A11 Call or Email
Ø91 23 10.6 5812 14990 27.5 3300 62.5 0.809 M2091 HJ12 HC12 Ø30-Ø304 N-212A6 Call or Email
Ø91 23 10.6 5812 14990 27.5 3300 59.5 0.770 M2091 HJ12 HC12 Ø30-Ø304 N-212A8 Call or Email
Ø91 23 10.6 5812 14990 27.5 3300 69.9 0.912 M2091 HJ12 HC12 Ø30-Ø304 N-212A11 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2500 125 2.255 M2511 HJ15 HC15 Ø50-Ø381 N-215A8 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2500 118 2.241 M2511 HJ15 HC15 Ø50-Ø381 N-215A11 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2500 138 2.822 M2511 HJ15 HC15 Ø50-Ø381 N-215A15 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2000 146 3.961 M2511 HJ15 HC15 Ø50-Ø450 N-218A8 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2000 138 3.744 M2511 HJ15 HC15 Ø50-Ø450 N-218A11 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 2000 191 5.183 M2511 HJ15 HC15 Ø50-Ø450 N-218A15 Call or Email
Ø180 23 10.6 9177 23861 30.6 1800 215 7.355 ML2816 HJ24-1 HC24-1 Ø120-Ø510 N-220A11 Call or Email
Ø180 23 10.6 9177 23861 30.6 1800 202 6.910 ML2816 HJ24-1 HC24-1 Ø120-Ø510 N-220A15 Call or Email
Ø205 26 12 9177 23861 26.5 1400 332 18.199 ML3320 HJ24-1 HC24-1 Ø150-Ø610 N-224A11 Call or Email
Ø205 26 12 9177 23861 26.5 1400 317 17.376 ML3320 HJ24-1 HC24-1 Ø150-Ø610 N-224A15 Call or Email
Ø205 26 12 9177 23861 26.5 1400 286 15.677 ML3320 HJ24-1 HC24-1 Ø150-Ø610 N-224A20 Call or Email
Ø230 34 18 10197 24472 29.5 1200 530 43 ML3320 HJ24-1 HC24-1 Ø210-Ø800 N-232A11 Call or Email
Ø230 34 18 10197 24472 29.5 1200 515 43 ML3320 HJ24-1 HC24-1 Ø210-Ø800 N-232A15 Call or Email
Ø230 34 18 10197 24472 29.5 1200 485 42 ML3320 HJ24-1 HC24-1 Ø210-Ø800 N-232A20 Call or Email

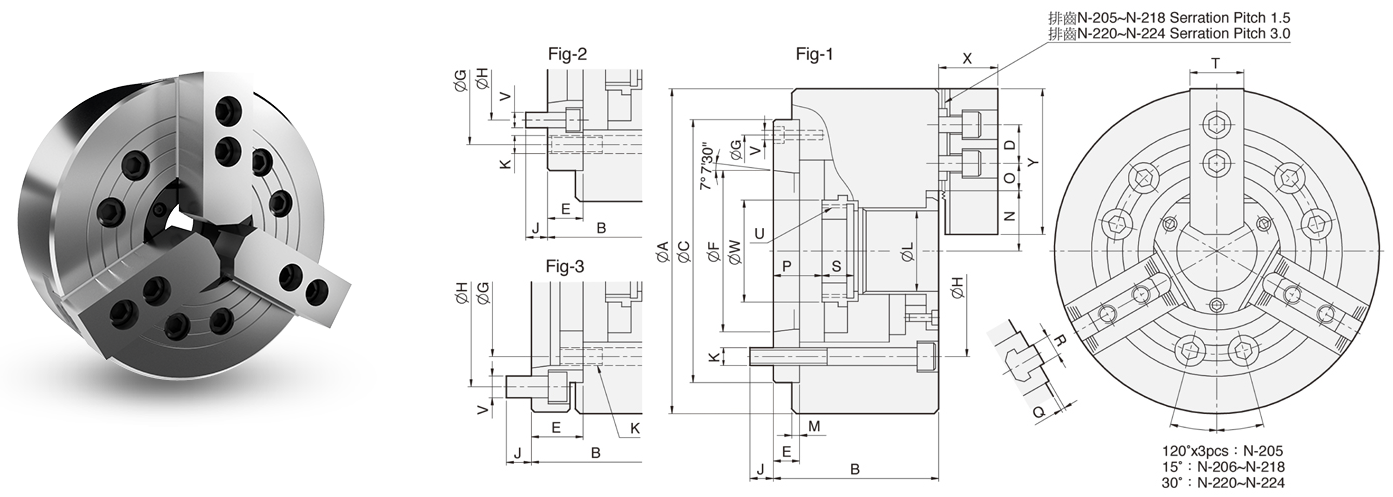

A B C
(H6)		 D E F G H J K L M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U
max.		 V W X Y Reference DIM Part Number Price Each
135 71 110 14 15 63.513 96 82.55 15.5 3-M10 33 4 26.5 19.75 7.75 16 6 2 10 20 25 M40x1.5 3-M6 45 31 54 Fig-1 N-205A4 Call or Email
135 88 110 14 32 82.563 82.55 104.78 14 3-M10 33 4 26.5 19.75 7.75 33 23 2 10 20 25 M40x1.5 6-M10 45 31 54 Fig-3 N-205A5 Call or Email
169 96 140 20 20 63.513 104.78 82.55 16 6-M10 45 5 32 22.75 9.25 31 19 2 12 19 31 M55x2 6-M10 60 37 73 Fig-2 N-206A4 Call or Email
169 91 140 20 15 82.563 116 104.78 16 6-M10 45 5 32 22.75 9.25 26 14 2 12 19 31 M55x2 3-M6 60 37 73 Fig-1 N-206A5 Call or Email
169 111 140 20 35 106.375 104.78 133.35 16 6-M10 45 5 32 22.75 9.25 46 34 2 12 19 31 M55x2 6-M12 60 37 73 Fig-3 N-206A6 Call or Email
210 109 170 25 23 82.563 133.35 104.78 14 6-M12 52 5 38.7 29.75 11.75 37.5 21.5 2 14 20.5 35 M60x2 6-M10 66 38 95 Fig-2 N-208A5 Call or Email
210 103 170 25 17 106.375 150 133.35 18 6-M12 52 5 38.7 29.75 11.75 31.5 15.5 2 14 20.5 35 M60x2 3-M6 66 38 95 Fig-1 N-208A6 Call or Email
210 126 170 25 40 139.719 133.35 171.45 24 6-M12 52 5 38.7 29.75 11.75 54.5 38.5 2 14 20.5 35 M60x2 6-M16 66 38 95 Fig-3 N-208A8 Call or Email
254 120 220 30 25 106.375 171.45 133.35 18 6-M16 75 5 51 33.75 14.25 33.5 14.5 2 16 25 40 M85x2 6-M12 94 43 110 Fig-2 N-210A6 Call or Email
254 113 220 30 18 139.719 190 171.45 24 6-M16 75 5 51 33.75 14.25 26.5 7.5 2 16 25 40 M85x2 3-M8 94 43 110 Fig-1 N-210A8 Call or Email
254 145 220 30 50 196.869 171.45 235 28 6-M16 75 5 51 33.75 14.25 58.5 39.5 2 16 25 40 M85x2 6-M20 94 43 110 Fig-3 N-210A11 Call or Email
304 129 220 30 25 106.375 171.45 133.35 18 6-M16 91 6 61.3 45.75 15.75 33 10 2 21 28 50 M100x2 6-M12 108 51 130 Fig-2 N-212A6 Call or Email
304 122 220 30 18 139.719 190 171.45 25 6-M16 91 6 61.3 45.75 15.75 26 3 2 21 28 50 M100x2 3-M8 108 51 130 Fig-1 N-212A8 Call or Email
304 154 220 30 50 196.869 171.45 235 28 6-M16 91 6 61.3 45.75 15.75 58 35 2 21 28 50 M100x2 6-M20 108 51 130 Fig-3 N-212A11 Call or Email
381 160 300 43 33 139.719 235 171.45 24 6-M20 117.5 6 82 45.25 15.25 40 17 5 22 43 62 M130x2 6-M16 139 66 165 Fig-2 N-215A8 Call or Email
381 149 300 43 22 196.869 260 235 28 6-M20 117.5 6 82 45.25 15.25 29 6 5 22 43 62 M130x2 3-M20 139 66 165 Fig-1 N-215A11 Call or Email
381 184 300 43 57 285.775 235 330.2 29 6-M20 117.5 6 82 45.25 15.25 64 41 5 22 43 62 M130x2 6-M24 139 66 165 Fig-3 N-215A15 Call or Email
450 160 300 43 33 139.719 235 171.45 24 6-M20 117.5 6 82 79.75 15.25 40 6 5 22 43 62 M130x2 6-M16 139 66 165 Fig-2 N-218A8 Call or Email
450 149 300 43 22 196.869 260 235 28 6-M20 117.5 6 82 79.75 15.25 29 6 5 22 43 62 M130x2 3-M10 139 66 165 Fig-1 N-218A11 Call or Email
450 184 300 43 57 285.775 235 330.2 29 6-M20 117.5 6 82 79.75 15.25 64 41 5 22 43 62 M130x2 6-M24 139 66 165 Fig-3 N-218A15 Call or Email
510 169 380 60 41 196.869 330.2 235 30 6-M24 180 6 112.5 60.5 24.5 52 29 5 25 38 64 M190x3 6-M20 206 73 180 Fig-2 N-220A11 Call or Email
510 155 380 60 27 285.775 330.2 330.2 33 6-M24 180 6 112.5 60.5 24.5 38 15 5 25 38 64 M190x3 3-M12 206 73 180 Fig-1 N-220A15 Call or Email
610 186 520 60 45 196.869 463.6 235 28 6-M24 205 6 139.9 87.5 24.5 61 35 5 25 38 64 M215x3 6-M20 230 73 180 Fig-2 N-224A11 Call or Email
610 183 520 60 42 285.775 463.6 330.2 32.5 6-M24 205 6 139.9 87.5 24.5 58 32 5 25 38 64 M215x3 6-M24 230 73 180 Fig-2 N-224A15 Call or Email
610 166 520 60 25 412.775 463.6 463.6 35 6-M24 205 6 139.9 87.5 24.5 41 15 5 25 38 64 M215x3 3-M10 230 73 180 Fig-1 N-224A20 Call or Email
800 189 520 60 45 196.869 463.6 235 28 6-M24 230 6 162 153.5 24.5 61 27 5 25 38 64 M250x3 6-M20 262 73 180 Fig-2 N-232A11 Call or Email
800 186 520 60 42 285.775 463.6 330.2 32.5 6-M24 230 6 162 153.5 24.5 58 24 5 25 38 64 M250x3 6-M24 262 73 180 Fig-2 N-232A15 Call or Email
800 169 520 60 25 412.775 463.6 463.6 35 6-M24 230 6 162 153.5 24.5 41 7 5 25 38 64 M250x3 3-M10 262 73 180 Fig-1 N-232A20 Call or Email
