MS Hydraulic Cylinder

Non through-hole rotary hydraulic cylinder (valve included)

Built-in safty check valves.

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

Piston Area (cm²)		Max. Draw Bar Force kN(kgf)	Piston Stroke (mm)	Max. Operating Pressure MPa(kgf / cm²	Max. Speed (r.p.m.)	Moment Of Inertia I (kg．m²)	Weight (kg)	Total Leakage L/min	SPEC Part Number	Price Each
Push Side	Pull Side	Pull Side	Piston Stroke (mm)	Max. Operating Pressure MPa(kgf / cm²	Max. Speed (r.p.m.)	Moment Of Inertia I (kg．m²)	Weight (kg)	Total Leakage L/min	SPEC Part Number	Price Each
86	79	29(2957)	20	4.0(40.8)	6000	0.0125	7.1	0.8	MS105	Call or Email
122	113	42(4283)	25	4.0(40.8)	6000	0.0225	10	0.8	MS125	Call or Email
176	160	60(6118)	30	4.0(40.8)	5500	0.0475	13.5	0.8	MS150	Call or Email
314	290	108(11013)	35	4.0(40.8)	5500	0.0975	22	0.8	MS200	Call or Email

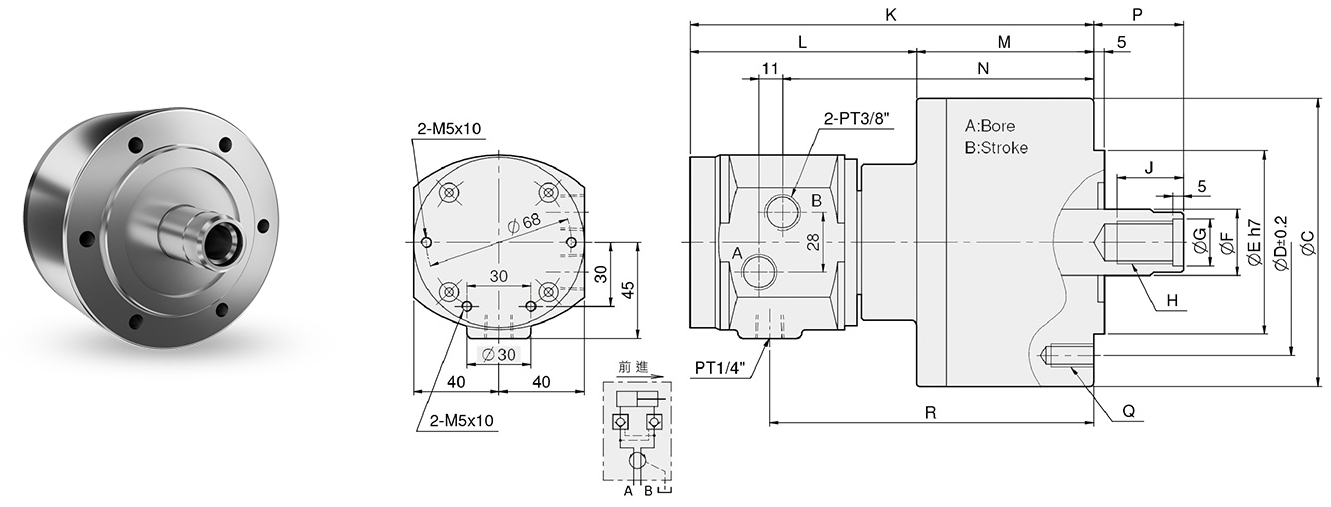

A	B	C	D	E	F	G	H	J	K	L	M	N	P max.	P min.	Q	R	DIM Part Number	Price Each
105	20	135	100	80	30	21	M20x2.5	35	197	108	89	152	45	25	6-M10x20	158	MS105	Call or Email
125	25	160	130	110	35	25	M24x3.0	44	205	108	97	160	51	26	6-M12x24	166	MS125	Call or Email
150	30	190	130	110	45	31	M30x3.5	45	214	108	106	169	56	26	12-M12x24	175	MS150	Call or Email
200	35	245	145	120	55	37	M36x4.0	60	228	108	122	183	69	34	12-M16x30	189	MS200	Call or Email
