MM Hydraulic Cylinder

High speed and compact through-hole rotary hydraulic cylinder
  • Compact hydraulic cylinder design with light weight can reduce the spindle loading while running in high speed.
  • Built-in check valve in safety auto lock and pressure relief valve in case of power failure occur.
  • New model developed for rear installation.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Piston
Dia.
(mm)		 Piston Area
(cm²)		 Max. Draw Bar Force
kN(kgf)		 Piston
Stroke
(mm)		 Max.
Operating
Pressure
MPa(kgf / cm²		 Max.
Speed
(r.p.m.)		 Moment Of
Inertia
I
(kg．m²)		 Weight
(kg)		 Total
Leakage
L/min		 SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
36 64 60 23.8(2427) 22.3(2274) 5 4.0(40.8) 8000 0.013 7 0.8 MM1036A Call or Email
46 100 89 38(3875) 33(3365) 15 4.0(40.8) 7000 0.026 9.8 3.0 MM1246A Call or Email

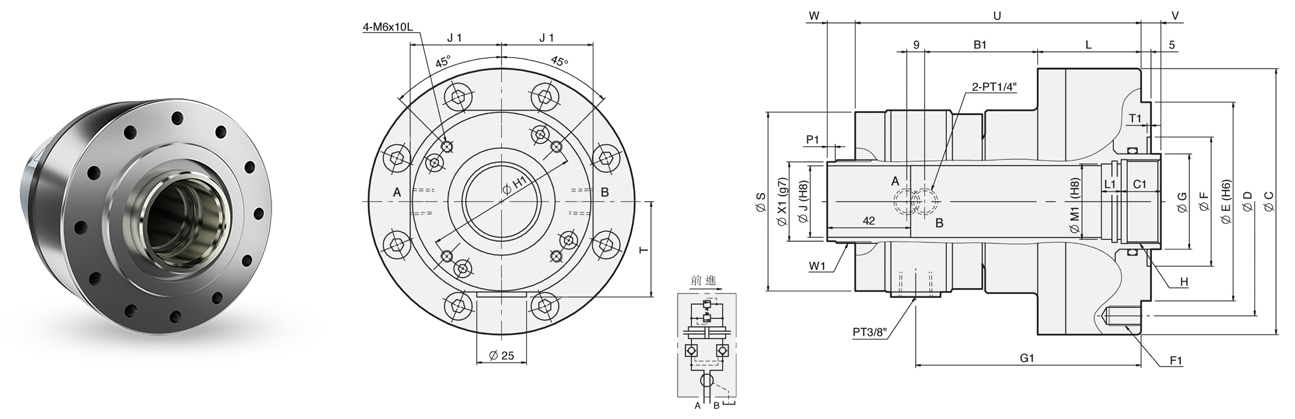

C D E F G H J L T U V
max.		 V
min.		 W
max.		 W
min.		 B1 C1 F1 G1 H1 J1 L1 M1 !1 T1 W1 P1 X1 DIM Part Number Price Each
134 115 100 65 48 M42x1.5 36 52 48 144 10 5 17 12 57 20 6-M10x15 113.5 76 46 10 38 M4x9L 2 M42xP1.5 2 40 MM1036A Call or Email
155 130 100 80 65 M55x2.0 46 76 61 179 15 0 40 25 59.5 30 12-M10x20 140 98 59 15 50 M5x10L 6 M52xP1.5 9 50 MM1246A Call or Email
