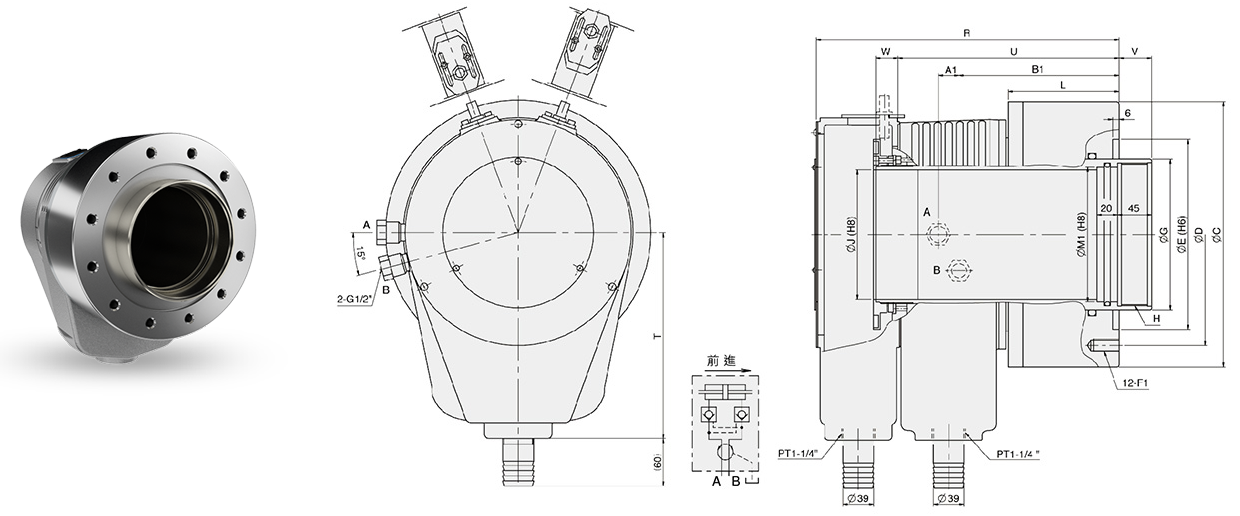

ML-CM.B Hydraulic Cylinder

Extra large through-hole rotary hydraulic cylinder
  • Matching for large bore power chucks.
  • Special aluminum alloy steel body, light weight for reducing the spindle loading.
  • Within check valves to maintain the thrust force.
  • Extra large bore design, equipped with coolant collector and detective plate.
  • The proximity switches and mounting bolts are extra option.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Piston
Dia.
(mm)
Piston Area
(cm²)
Max. Draw Bar Force
kN(kgf)
Piston
Stroke
(mm)
Max.
Operating
Pressure
MPa(kgf / cm²
Max.
Speed
(r.p.m.)
Moment Of
Inertia
I
(kg.m²)
Weight
(kg)
Total
Leakage
L/min
SPEC Part Number Price Each
Push Side Pull Side Push Side Pull Side
285 394 350 116.8(11910) 106.8(10584) 42 3.3(33.6) 2000 1.08 87 9 ML2814CM28B Call or Email
285 394 350 116.8(11910) 106.8(10584) 42 3.3(33.6) 2000 0.90 72 9 ML2816CM28B Call or Email
335 515.7 416.9 152.9(15591) 136.9(13960) 42 3.3(33.6) 1600 1.09 103 10 ML3320CM33B Call or Email
C D E
(H6)
G H J L R T U V
max.
V
min.
W
max.
W
min.
A1 B1 F1 M1 DIM Part Number Price Each
335 280 240 190 M158x3.0 145 140 382 260 279 41 -1 67 25 18 202 M16x32L 150 ML2814CM28B Call or Email
335 280 240 190 M180x3.0 166.5 140 382 260 279 41 -1 67 25 18 202 M16x32L 170 ML2816CM28B Call or Email
390 320 280 230 M215x3.0 205 147 392 260 292 41 -1 67 25 18 210 M20x32L 210 ML3320CM33B Call or Email
