CAT 50 Taper Quick Change V-Flange Tap Holders

V-FLANGE TAP HOLDERS
Tension / Compression and Synchronous Tapping
For use with Industry Standard Quick-Change Tap Collets

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

CAT 50 TAPER

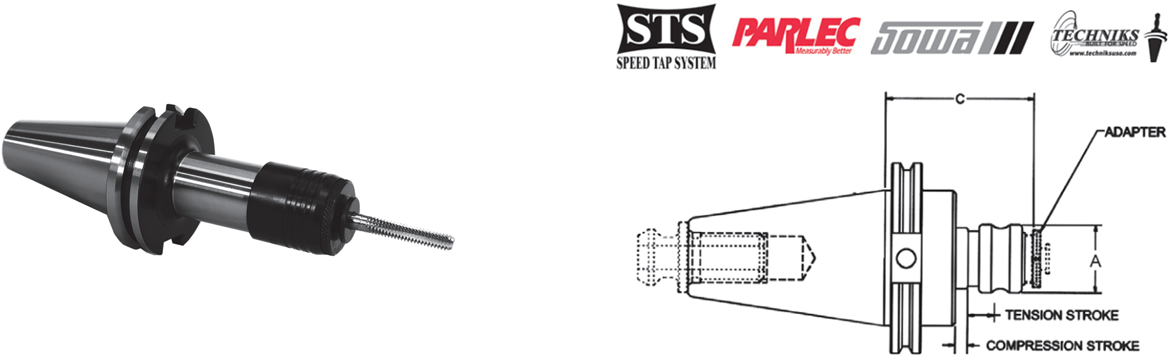

Adapter Size	Capacity	C Proj	Comp	Tension	A Dia	Brand	Part Number	Code
TENSION/COMPRESSION
1	#0 - 9/16" Hand, 1/16" & 1/8" NPT	3.15	0.250	0.560	1.390	Parlec	C50-10TA315-P	B
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	3.52	0.300	0.300	1.417	STS	C50-10TA352-U	D
	#0 - 9/16" Hand, 1/8" NPT	4.00	0.290	0.290	1.430	Sowa	C50-10TA400-G	C
	#0 - 9/16" Hand, 1/8" NPT	5.02	0.390	0.790	1.250	Sowa	C50-10TA502-G	C
2	5/16" - 7/8" Hand, 1/4",3/8" & 1/2" NPT	3.93	0.492	0.492	2.080	STS	C50-20TA393-U	D
	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	4.25	0.250	0.560	2.180	Parlec	C50-20TA425-P	B
	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	5.66	0.490	0.850	2.000	Sowa	C50-20TA566-G	C
3	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	5.65	0.250	0.560	3.260	Parlec	C50-30TA565-P	B
	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	5.78	0.787	0.787	3.070	STS	C50-30TA578-U	D
	13/16" - 1 3/8" Hand, 1/2" - 1" NPT	6.25	0.790	0.790	3.070	Sowa	C50-30TA625-G	C
	13/16" - 1 3/8" Hand, 1/2" - 1" NPT	7.72	0.590	0.980	2.870	Sowa	C50-30TA772-G	C
RIGID TAPPING
1	#0 - 9/16" Hand, 1/8" NPT	3.020	Rigid	Rigid	1.250	Sowa	C50-10FS302-G	C
1	#0-9/16" Hand, 1/16" & 1/8" NPT	3.440	Rigid	Rigid	1.250	STS	C50-10FS344-U	D
2	5/16"-7/8" Hand, 1/4", 3/8" & 1/2" NPT	3.540	Rigid	Rigid	1.960	STS	C50-20FS354-U	D
2	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	3.910	Rigid	Rigid	2.000	Sowa	C50-20FS391-G	C
3	13/16"-1 3/8" Hand, 1/2"-1" NPT	4.980	Rigid	Rigid	2.870	Sowa	C50-30FS498-G	C
	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	4.720	Rigid	Rigid	2.830	STS	C50-30FS472-U	D
	13/16" - 1 3/8" Hand, 3/4" - 1" NPT	5.650	Rigid	Rigid	3.260	Parlec	C50-30FS565-P	B
