CAT 40 TG Series Collet Chucks

TG SERIES COLLET CHUCKS

Kingston: Balanced to 15,000 RPM @ g6.3
Spin Tru: Balanced to 20,000 RPM @ g2.5
Manufactured to ISO9002 quality control standards
Each holder balanced on a HAIMER Balancing machine and includes certificate of individual inspection and balancing
Accuracy: 0.0002" TIR or better
Taper cone circularity per AT3 specifications .00006" or better
H5 bore tolerance for optimum surface contact with cutting tool
Thru-tool coolant feature is standard
Includes collet nut

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

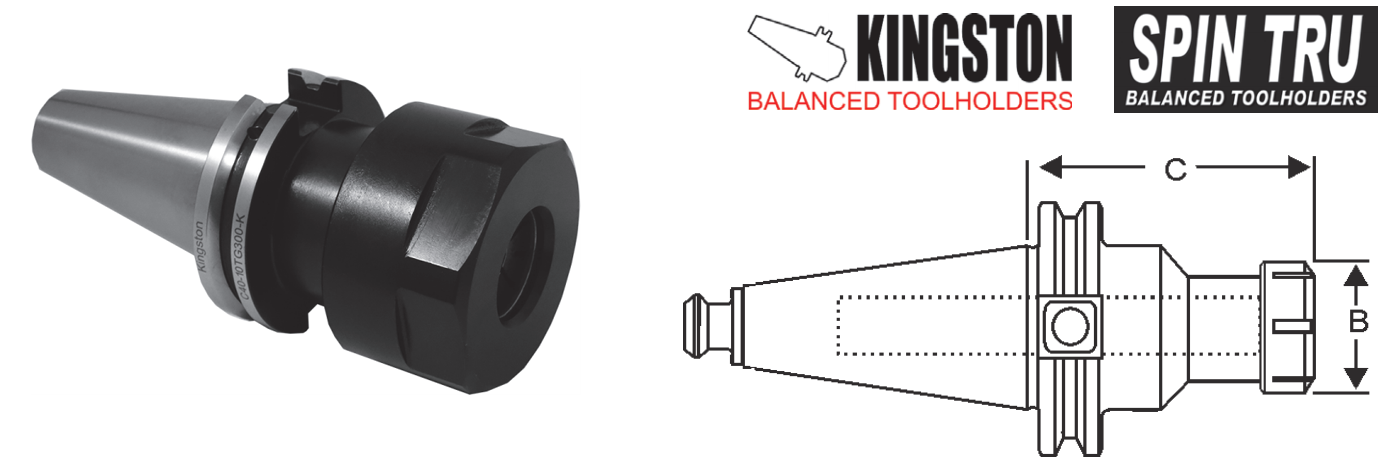

Collet Series	C Proj.	B Nut Dia.	Nut Tight. Torque (ft.lbs.)	Brand	Part Number	MAX RPM Balanced Up to	Collet Nut	Wrench	Code
TG 75	2.75	1.97	60	Spin Tru	C40-75TG275-KB	20,000G2.5	CN-TG075-K	WR-TG075-K	D
TG 75	3.00	1.97	60	Kingston	C40-75TG300-K	15,000G6.3	CN-TG075-K	WR-TG075-K	F
TG 75	6.00	1.97	60	Kingston	C40-75TG600-K	15,000G6.3	CN-TG075-K	WR-TG075-K	F
TG 75	6.00	1.97	60	Spin Tru	C40-75TG600-KB	20,000G2.5	CN-TG075-K	WR-TG075-K	D
TG 100	3.00	2.44	60	Kingston	C40-10TG300-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 100	3.00	2.44	60	Spin Tru	C40-10TG300-KB	20,000G2.5	CN-TG100-K	WR-TG100-K	D
TG 100	4.00	2.44	60	Kingston	C40-10TG400-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 100	4.00	2.44	60	Spin Tru	C40-10TG400-KB	20,000G2.5	CN-TG100-K	WR-TG100-K	D
TG 100	5.00	2.44	60	Kingston	C40-10TG500-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 100	5.50	2.44	60	Kingston	C40-10TG550-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 100	6.00	2.44	60	Kingston	C40-10TG600-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 100	6.00	2.44	60	Spin Tru	C40-10TG600-KB	20,000G2.5	CN-TG100-K	WR-TG100-K	D
TG 100	6.50	2.44	60	Kingston	C40-10TG650-K	15,000G6.3	CN-TG100-K	WR-TG100-K	F
TG 150	4.88	3.50	70	Kingston	C40-15TG488-K	15,000G6.3	CN-TG150-K	WR-TG100-K	F
TG 150	4.88	3.50	70	Spin Tru	C40-15TG488-KB	20,000G2.5	CN-TG150-K	WR-TG100-K	D
