Mazak Style "P" Toolholder Bushing - (Inch OD - Metric ID)
Mazak Style "P" Toolholder Bushing
New Mazak Bushings like the ones that came with the machine.
For Mazak Integrex 50Y Machines
New Mazak Bushings like the ones that came with the machine.
For Mazak Integrex 50Y Machines
Mazak Style "P" Toolholder Bushings Also Available In: Click Here
- Inch OD – Inch ID
- Metric OD – Inch ID
- Metric OD – Metric ID

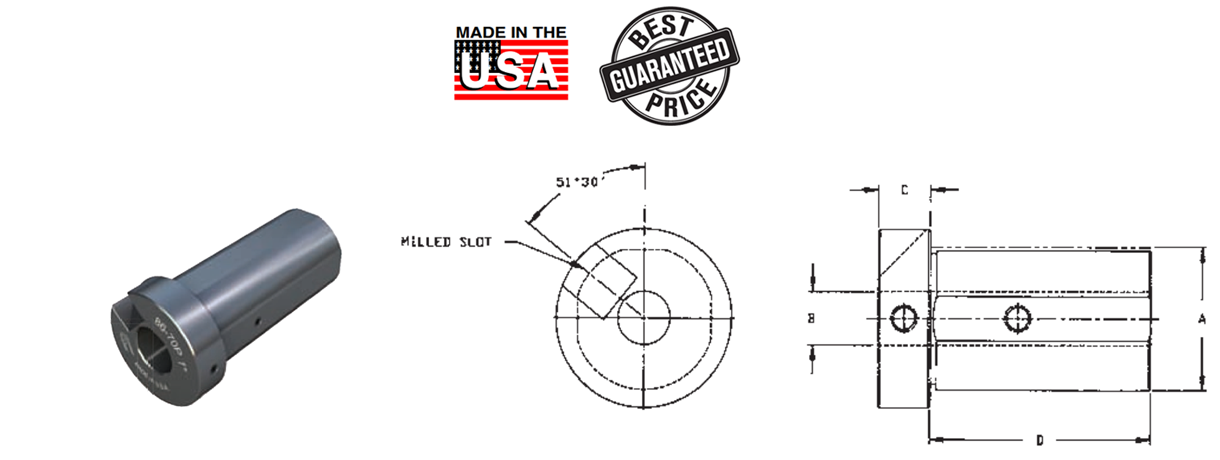

Bushing OD |
Slot Thickness |
Length Under Head |
Bushing ID |
Part Number |
A | C | D | B | |
2" | 3/4" | 4-13/64" | 8mm | CNC 86-70P 8mm |
10mm | CNC 86-70P 10mm | |||
12mm | CNC 86-70P 12mm | |||
16mm | CNC 86-70P 16mm | |||
20mm | CNC 86-70P 20mm | |||
25mm | CNC 86-70P 25mm | |||
32mm | CNC 86-70P 32mm | |||
40mm | CNC 86-70P 40mm |
