Mazak SQT Style Forward Turning Toolholder

Mazak SQT Style
Forward Turning Toolholder
3/4” or 1” OD Holder
Form SQT-C1

SQT28 & Multiplex VDI Also Available

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

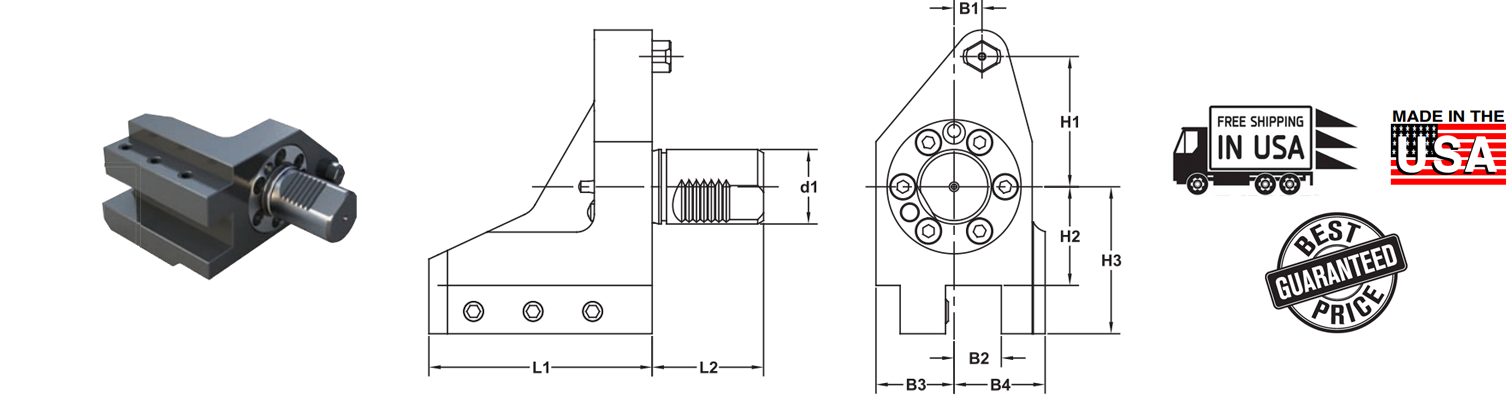

D1	B1	B2	B3	B4	L1	L2	H1	H2	H3	Part Number	Price
40	15	20	38	41	100	60	68	45	65	SQT31.1020	CALL
40	15	25	42	50	120	60	70	53	79	SQT31.1525	CALL
50	N/A	1"/25	50	50	150	75	70	55	80	SQT31.2825	CALL
