SOFT JAWS FLAT - METRIC TONGUE & GROOVE **FOR USE ON: Forkardt, Rohm & SMW Chucks
FOR USE ON: Forkardt, Rohm & SMW Chucks
- Metric tongue & groove
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel

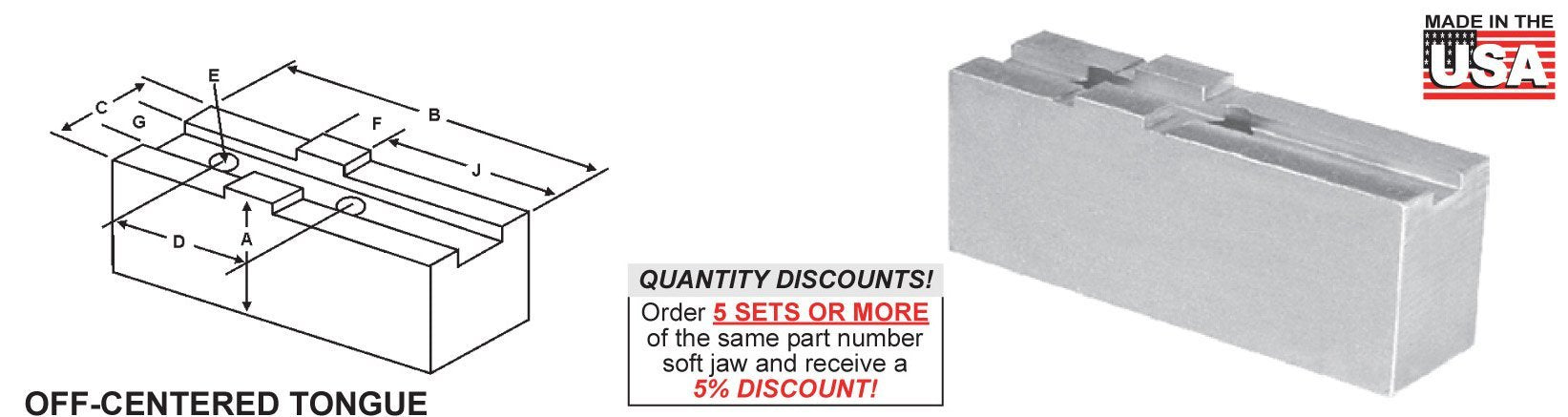

Critical Dimensions | ALUMINUM | STEEL | ||||||||||
Group No. |
Chuck Size | Groove Width G |
Tongue Width F |
Screw Size E |
Hole Space D |
Hght Inch A |
Tongue to Front J |
Tongue Position | Width Inch C |
Length Inch B |
FLAT END Part Number |
FLAT END Part Number |
TK-08-5/16-32 | 6 | 0.315 (8mm) | 0.708 | 5/16 | 1.260 (32mm) | 1.50 | 1.660 | Offset | 0.750 | 3.375 | SW-6150AF | SW-6150F |
3.00 | 1.660 | Offset | 0.750 | 3.375 | SW-6300AF | SW-6300F | ||||||
TK-10-5/16-40 | 8 | 0.393 (10mm) | 0.787 | 5/16 | 1.575 (40mm) | 2.00 | 1.970 | Offset | 1.250 | 4.125 | SW-8200AF | SW-8200F |
4.00 | 1.970 | Offset | 1.250 | 4.125 | SW-8400AF | SW-8400F | ||||||
TK-12-1/2-40 | 10 | 0.472 (12mm) | 0.787 | 1/2 | 1.575 (40mm) | 2.00 | 2.750 | Offset | 1.500 | 5.000 | SW-10200AF | SW-10200F |
4.00 | 2.750 | Offset | 1.500 | 5.000 | SW-10400AF | SW-10400F | ||||||
TK-12-1/2-54 | 12 | 0.472 (12mm) | 1.023 | 1/2 | 2.126 (54mm) | 2.00 | 2.937 | Offset | 1.750 | 5.750 | SW-12200AF | SW-12200F |
4.00 | 2.937 | Offset | 1.750 | 5.750 | SW-12400AF | SW-12400F | ||||||
TK-18-5/8-60 | 16 | 0.708 (18mm) | 1.181 | 5/8 | 2.362 (60mm) | 3.00 | 3.937 | Offset | 2.000 | 7.250 | SW-16300AF | SW-16300F |
5.00 | 3.937 | Offset | 2.000 | 7.250 | SW-16500AF | SW-16500F |
