ROUND JAWS - METRIC TONGUE & GROOVE **FOR USE ON: Forkardt, Rohm & SMW Chucks
FOR USE ON: Forkardt, Rohm & SMW Chucks
- Metric Tongue & Groove
- Round Jaws allow for complete gripping of workpiece
- Oversized jaws available
- Ideal for thin-walled or irregular shaped workpieces.
- Can be machined to fit workpiece
- All jaws have 2 holes
- Special "J" dimensions available
- Available in Aluminum & Steel

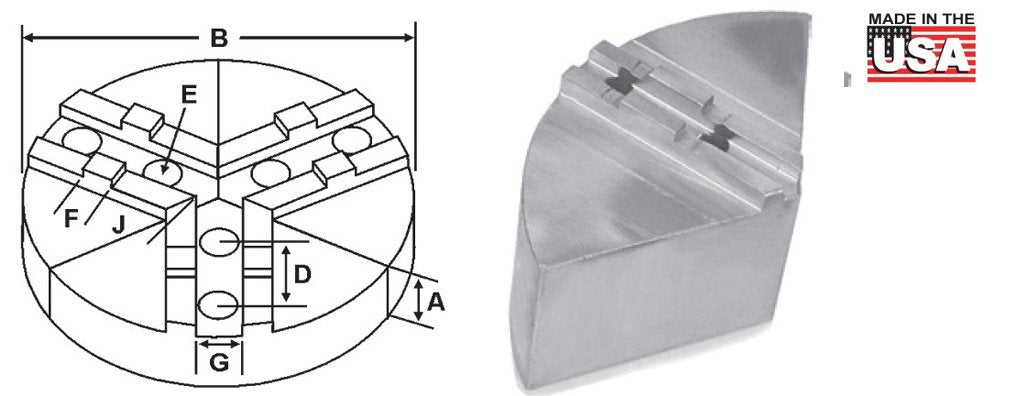

Critical Dimensions | ALUMINUM | STEEL | ||||||||
Group No. |
Chuck Size | Groove Width G |
Tongue Width F |
Screw Size E |
Hole Space D |
Tongue to Front J |
Pie Dia B |
Hght Inch A |
Part Number |
Part Number |
TK-08-5/16-32 | 6 | 0.315 (8mm) | 0.708 | 5/16 | 1.260 (32mm) | 1.380 | 6 | 2.00 | RSW-6200A | RSW-6200S |
3.00 | RSW-6300A | RSW-6300S | ||||||||
TK-10-5/16-40 | 8 | 0.393 (10mm) | 0.787 | 5/16 | 1.575 (40mm) | 2.000 | 8 | 2.00 | RSW-8200A | RSW-8200S |
3.00 | RSW-8300A | RSW-8300S | ||||||||
TK-12-1/2-40 | 10 | 0.472 (12mm) | 0.787 | 1/2 | 1.575 (40mm) | 2.400 | 10 | 2.00 | RSW-10200A | RSW-10200S |
3.00 | RSW-10300A | RSW-10300S | ||||||||
4.00 | RSW-10400A* | - | ||||||||
TK-12-1/2-54 | 12 | 0.472 (12mm) | 1.023 | 1/2 | 2.126 (54mm) | 2.950 | 12 | 2.00 | RSW-12200A | - |
3.00 | RSW-12300A | - |
Round Jaw Material: ALUMINUM-6061-T6 Bar Stock, CAST IRON-Gray, STEEL-1018
* denotes non-stock item. Please allow 1 week manufacturing time.
