SOFT JAWS POINTED - AMERICAN STANDARD TONGUE & GROOVE
FOR USE ON: Bison, Buck, BTC, Cushman, TMX, PBA, Yuasa & Rohm Chucks
- American Standard Tongue & Groove
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum, Steel

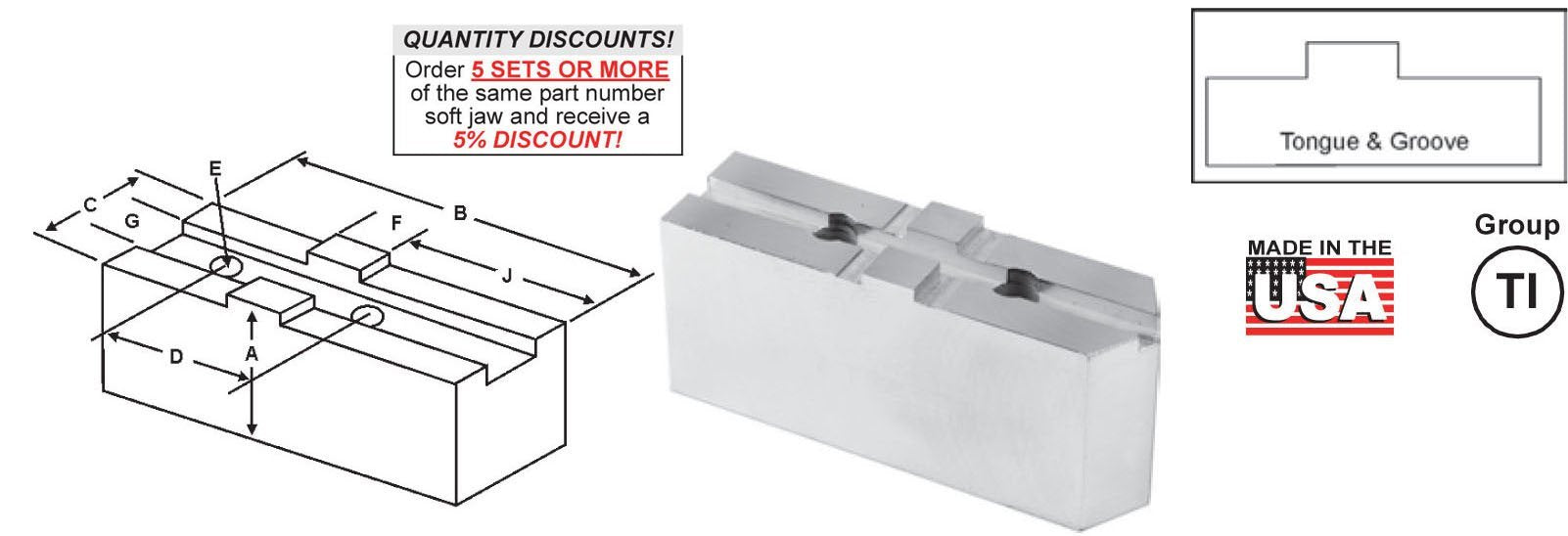

Critical Dimensions | ALUMINUM | STEEL | |||||||||||
Group No |
Chuck Size | Type | Groove Width G |
Tongue Width F |
Screw Size E |
Hole Space D |
Height Inch A |
Tongue to Front J |
Tongue Position | Length Inch B |
Width Inch C |
POINTED END Part Number |
POINTED END Part Number |
TI-25-1/4-11 | 4 | MEDIUM DUTY | 0.250 | 0.437 | 1/4 | 1.188 | 1.250 | 0.880 | Offset | 2.000 | 0.625 | TG-4120AP | TG-4120P |
TI-31-5/16-12 | 5 | MEDIUM DUTY | 0.313 | 0.500 | 5/16 | 1.250 | 1.500 | 1.100 | Offset | 2.375 | 0.750 | TG-5150AP | TG-5150P |
2.000 | 1.100 | Offset | 2.375 | 0.750 | TG-5200AP | TG-5200P | |||||||
TI-31-3/8-15 | 6 | MEDIUM DUTY | 0.313 | 0.500 | 3/8 | 1.500 | 1.500 | 1.350 | Centered | 3.200 | 1.000 | TG-6153AP | TG-6153P |
1.500 | 1.360 | Offset | 2.750 | 1.000 | TG-6150AP | TG-6150P | |||||||
1.500 | 1.610 | Offset | 3.000 | 1.000 | TG-6151AP | TG-6151P | |||||||
1.500 | 1.813 | Offset | 3.250 | 1.000 | TG-6151-18AP | TG-6151-18P | |||||||
2.000 | 1.350 | Centered | 3.200 | 1.000 | TG-6203AP | TG-6203P | |||||||
2.000 | 1.360 | Offset | 2.750 | 1.000 | TG-6200AP | TG-6200P | |||||||
2.500 | 1.350 | Centered | 3.200 | 1.000 | TG-6253AP | TG-6253P | |||||||
2.500 | 1.690 | Offset | 3.250 | 1.500 | TG-6252AP | TG-6252P | |||||||
2.500 | 1.360 | Offset | 2.750 | 1.000 | TG-6250AP | TG-6250P | |||||||
3.000 | 1.350 | Centered | 3.200 | 1.000 | TG-6303AP | TG-6303P | |||||||
3.500 | 1.350 | Centered | 3.200 | 1.000 | TG-6353AP | TG-6353P | |||||||
3.000 | 1.360 | Offset | 2.750 | 1.000 | TG-6300AP | TG-6300P | |||||||
4.000 | 1.360 | Offset | 2.750 | 1.000 | TG-6400AP | TG-6400P | |||||||
TI-31-7/16-15 | 6 | HEAVY DUTY | 0.313 | 0.500 | 7/16 | 1.500 | 1.500 | 1.260 | Offset | 2.750 | 1.250 | TG-6155AP | TG-6155P |
1.500 | Center | Centered | 2.813 | 1.500 | TG-6158AP | TG-6158P | |||||||
2.000 | 1.260 | Offset | 2.750 | 1.500 | TG-6205AP | TG-6205P | |||||||
2.500 | 1.260 | Offset | 2.750 | 1.500 | TG-6255AP | TG-6255P | |||||||
2.500 | 1.750 | Offset | 3.250 | 1.500 | TG-6256AP | TG-6256P | |||||||
3.000 | 1.260 | Offset | 2.750 | 1.500 | TG-6305AP | TG-6305P | |||||||
3.500 | Center | Centered | 2.813 | 1.500 | TG-6358AP | TG-6358P | |||||||
TI-31-3/8-17 | 8 | MEDIUM DUTY | 0.313 | 0.500 | 3/8 | 1.750 | 2.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8200AP | TG-8200P |
2.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8200BP | - | |||||||
2.000 | 2.000 | Centered | 4.500 | 1.250 | TG-8203AP | TG-8203P | |||||||
2.500 | 2.000 | Offset | 3.750 | 1.250 | TG-8250AP | TG-8250P | |||||||
2.500 | 2.000 | Centered | 4.500 | 1.250 | TG-8253AP | TG-8253P | |||||||
3.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8300AP | TG-8300P | |||||||
3.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8300BP | - | |||||||
3.000 | 2.000 | Centered | 4.500 | 1.250 | TG-8303AP | TG-8303P | |||||||
4.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8400AP | TG-8400P | |||||||
4.000 | 2.000 | Centered | 4.500 | 1.250 | TG-8403AP | TG-8403P | |||||||
5.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8500AP | TG-8500P | |||||||
6.000 | 2.000 | Offset | 3.750 | 1.250 | TG-8600AP | TG-8600P | |||||||
TI-31-1/2-17 | 8 | HEAVY DUTY | 0.313 | 0.500 | 1/2 | 1.750 | 2.000 | 2.000 | Offset | 3.750 | 1.500 | TG-8205AP | TG-8205P |
2.000 | Center | Centered | 3.313 | 1.500 | TG-8208AP | TG-8208P | |||||||
3.000 | 2.000 | Offset | 3.750 | 1.500 | TG-8305AP | TG-8305P | |||||||
3.500 | Center | Centered | 3.313 | 1.500 | TG-8358AP | TG-8358P | |||||||
4.000 | 2.000 | Offset | 3.750 | 1.500 | TG-8405AP | TG-8405P | |||||||
6.000 | 2.000 | Offset | 3.750 | 1.500 | TG-8605AP | TG-8605P | |||||||
TI-31-1/2-17 | 8 | 8" W & S | 0.313 | 0.500 | 1/2 | 1.750 | 2.500 | 1.813 | Offset | 3.500 | 1.250 | TG-8259AP | TG-8259P |
3.000 | 1.813 | Offset | 3.500 | 1.250 | TG-8309AP | TG-8309P | |||||||
TI-50-1/2-21 | 10 | MEDIUM DUTY | 0.500 | 0.750 | 1/2 | 2.125 | 2.00 | 2.300 | Offset | 4.500 | 1.500 | TG-10200AP | TG-10200P |
2.00 | 2.300 | Offset | 4.500 | 1.500 | TG-10200BP | - | |||||||
2.00 | 2.300 | Offset | 4.500 | 2.000 | TG-10202AP | TG-10202P | |||||||
2.00 | 2.625 | Centered | 6.000 | 2.000 | TG-10203AP | TG-10203P | |||||||
2.50 | 2.300 | Offset | 4.500 | 1.500 | TG-10250AP | TG-10250P | |||||||
3.00 | 2.300 | Offset | 4.500 | 1.500 | TG-10300AP | TG-10300P | |||||||
3.00 | 2.300 | Offset | 4.500 | 2.000 | TG-10302AP | TG-10302P | |||||||
3.00 | 2.625 | Centered | 6.000 | 2.000 | TG-10303AP | TG-10303P | |||||||
4.00 | 2.300 | Offset | 4.500 | 1.500 | TG-10400AP | TG-10400P | |||||||
4.00 | 2.625 | Centered | 6.000 | 2.000 | TG-10403AP | TG-10403P | |||||||
TI-50-5/8-21 | 10 | HEAVY DUTY | 0.500 | 0.750 | 5/8 | 2.125 | 2.00 | 2.300 | Offset | 4.500 | 1.750 | TG-10205AP | TG-10205P |
2.00 | Center | Centered | 3.938 | 1.750 | TG-10208AP | TG-10208P | |||||||
2.50 | 2.300 | Offset | 4.500 | 1.750 | TG-10255AP | TG-10255P | |||||||
3.00 | 2.300 | Offset | 4.500 | 1.750 | TG-10305AP | TG-10305P | |||||||
4.00 | 2.300 | Offset | 4.500 | 1.750 | TG-10405AP | TG-10405P | |||||||
4.00 | Center | Centered | 3.938 | 1.750 | TG-10408AP | TG-10408P | |||||||
2.50 | 2.125 | Offset | 4.250 | 1.750 | TG-10259AP | TG-10259P | |||||||
3.50 | 2.125 | Offset | 4.250 | 1.750 | TG-10359AP | TG-10359P | |||||||
TI-50-1/2-25 | 12 | MEDIUM DUTY | 0.500 | 0.750 | 1/2 | 2.500 | 2.00 | 2.900 | Offset | 5.250 | 1.750 | TG-12200AP | TG-12200P |
2.00 | 2.900 | Centered | 6.550 | 1.750 | TG-12203AP | TG-12203P | |||||||
2.50 | 2.900 | Offset | 5.250 | 1.750 | TG-12250AP | TG-12250P | |||||||
2.50 | 2.900 | Centered | 6.550 | 1.750 | TG-12253AP | TG-12253P | |||||||
2.50 | 3.670 | Offset | 6.000 | 2.000 | TG-12252AP | TG-12252P | |||||||
2.50 | Center | Centered | 4.500 | 2.000 | TG-12258AP | TG-12258P | |||||||
3.00 | 2.900 | Offset | 5.250 | 1.750 | TG-12300AP | TG-12300P | |||||||
3.00 | 2.900 | Centered | 6.550 | 1.750 | TG-12303AP | TG-12303P | |||||||
4.00 | 2.900 | Offset | 5.250 | 1.750 | TG-12400AP | TG-12400P | |||||||
4.00 | 2.900 | Centered | 6.550 | 1.750 | TG-12403AP | TG-12403P | |||||||
4.00 | 3.670 | Offset | 6.000 | 2.000 | TG-12402AP | TG-12402P | |||||||
4.00 | Center | Centered | 4.500 | 2.000 | TG-12408AP | TG-12408P | |||||||
6.00 | 2.900 | Offset | 5.250 | 1.750 | TG-12600AP | TG-12600P | |||||||
6.00 | 3.670 | Offset | 6.000 | 2.000 | TG-12602AP | TG-12602P | |||||||
TI-50-5/8-25 | 12 | 12" W & S | 0.500 | 0.750 | 5/8 | 2.500 | 2.50 | 2.500 | Offset | 4.875 | 1.750 | TG-12259AP | TG-12259P |
4.00 | 2.500 | Offset | 4.875 | 1.750 | TG-12409AP | TG-12409P | |||||||
TI-50-5/8-25 | 12 | HEAVY DUTY | 0.500 | 0.750 | 5/8 | 2.500 | 2.00 | 2.900 | Offset | 5.250 | 2.000 | TG-12205AP | TG-12205P |
2.50 | 2.900 | Offset | 5.250 | 2.000 | TG-12255AP | TG-12255P | |||||||
2.50 | 3.670 | Offset | 6.000 | 2.000 | TG-12256AP | TG-12256P | |||||||
3.00 | 2.900 | Offset | 5.250 | 2.000 | TG-12305AP | TG-12305P | |||||||
4.00 | 2.900 | Offset | 5.250 | 2.000 | TG-12405AP | TG-12405P | |||||||
4.00 | 3.670 | Offset | 6.000 | 2.000 | TG-12406AP | TG-12406P | |||||||
TI-50-5/8-30 | 15 | MEDIUM DUTY | 0.500 | 0.750 | 5/8 | 3.000 | 1.50 | 2.900 | Offset | 5.750 | 1.750 | TG-15150AP | TG-15150P |
2.00 | 2.900 | Offset | 5.750 | 1.750 | TG-15200AP | TG-15200P | |||||||
2.50 | 2.900 | Offset | 5.750 | 1.750 | TG-15250AP | TG-15250P | |||||||
2.50 | 2.900 | Offset | 6.250 | 2.000 | TG-15252AP | TG-15252P | |||||||
2.50 | Center | Centered | 5.188 | 2.500 | TG-15258AP | TG-15258P | |||||||
3.00 | 2.900 | Offset | 5.750 | 1.750 | TG-15300AP | TG-15300P | |||||||
4.00 | 2.900 | Offset | 5.750 | 1.750 | TG-15400AP | TG-15400P | |||||||
4.00 | 3.350 | Offset | 6.250 | 2.000 | TG-15402AP | TG-15402P | |||||||
5.00 | Center | Centered | 5.188 | 2.500 | TG-15508AP | TG-15508P | |||||||
TI-50-3/4-30 | 15 | 15" W&S | 0.500 | 0.750 | 3/4 | 3.000 | 3.50 | 3.000 | Offset | 5.750 | 2.000 | TG-15359AP | TG-15359P |
5.00 | 3.000 | Offset | 5.750 | 2.000 | TG-15509AP | TG-15509P | |||||||
TI-50-3/4-30 | 15 | HEAVY DUTY | 0.500 | 0.750 | 3/4 | 3.000 | 2.50 | 2.900 | Offset | 5.750 | 1.750 | TG-15255AP | TG-15255P |
2.50 | 3.200 | Offset | 6.000 | 2.500 | TG-15256AP | TG-15256P | |||||||
3.00 | 2.900 | Offset | 5.750 | 1.750 | TG-15305AP | TG-15305P | |||||||
4.00 | 2.900 | Offset | 5.750 | 1.750 | TG-15405AP | TG-15405P | |||||||
4.00 | 3.200 | Offset | 6.000 | 2.500 | TG-15406AP | TG-15406P | |||||||
TI-50-3/4-30 | 18 | HEAVY DUTY | 0.500 | 0.750 | 3/4 | 3.000 | 2.50 | 3.660 | Offset | 6.500 | 2.250 | TG-18250AP | TG-18250P |
2.50 | 3.660 | Offset | 6.500 | 2.500 | TG-18252AP | TG-18252P | |||||||
2.50 | 3.660 | Offset | 6.500 | 3.000 | TG-18256AP | TG-18256P | |||||||
3.00 | CENTER | Centered | 5.188 | 3.000 | TG-18308AP | TG-18308P | |||||||
4.00 | 3.660 | Offset | 6.500 | 2.250 | TG-18400AP | TG-18400P | |||||||
4.00 | 3.660 | Offset | 6.500 | 2.500 | TG-18402AP | TG-18402P | |||||||
5.00 | 3.660 | Offset | 6.500 | 2.250 | TG-18500AP | TG-18500P | |||||||
5.00 | 3.660 | Offset | 6.500 | 2.500 | TG-18502AP | TG-18502P | |||||||
5.00 | 3.660 | Offset | 6.500 | 3.000 | TG-18506AP | TG-18506P | |||||||
5.00 | CENTER | Centered | 5.188 | 3.000 | TG-18508AP | TG-18508P | |||||||
TI-50-3/4-30 | 18 | 18" W&S | 0.500 | 0.750 | 3/4 | 3.000 | 3.50 | 3.000 | Offset | 6.000 | 2.500 | TG-18359AP | TG-18359P |
5.00 | 3.000 | Offset | 6.000 | 2.500 | TG-18509AP | TG-18509P | |||||||
TI-50-7/8-30 | 24 | HEAVY DUTY | 0.500 | 0.750 | 7/8 | 3.000 | 3.000 | 4.500 | Offset | 7.500 | 3.000 | TG-24300AP | TG-24300P |
5.000 | 4.500 | Offset | 7.500 | 3.000 | TG-24500AP | TG-24500P |
