SOFT JAWS POINTED - 1.5 mm x 60° Serrations - Chuck Size 10 - 18

FOR USE ON: Kitagawa®, Samchully®, Strong®, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
  • 1.5mm x 60° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum, Steel & Aircraft Aluminum (where noted)
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

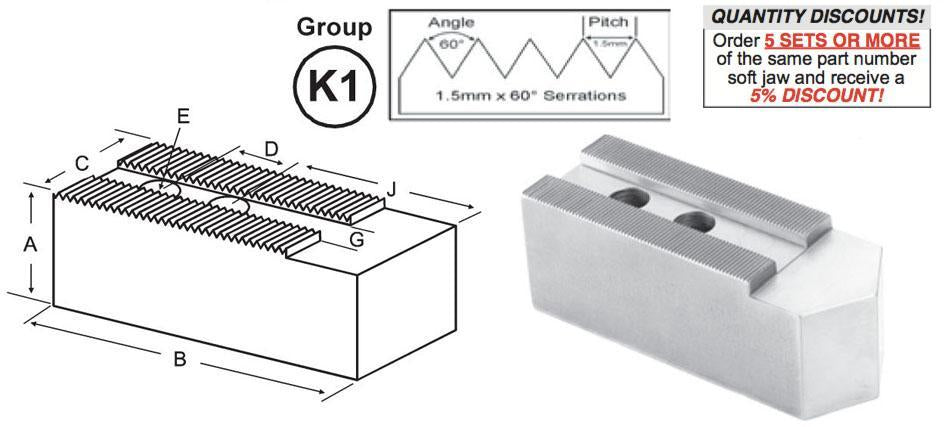

Critical Dimensions ALUMINUM STEEL
Group
No		 Chuck
Size		 Groove
Width
G		 Screw
Size
E		 Hole
Space
D		 Height
Inch
A		 Hole to
Front
J		 Width
Inch
C		 Length
Inch
B		 No.
of
Holes		 Industry
Reference		 POINTED END
Part
Number		 POINTED END
Part
Number
K1-16-30 10" 0.630 (16mm) 12mm 1.181 (30mm) 2.000 2.169 1.750 4.000 2 HR-82-2.0 KT-10200-21AP KT-10200-21P
KITAGAWA
B-10,
B-210,
BL-210,
BLT-210
Big-Bore
BB210†


Samchully
HS10, HC10
HH210
HCH10


STRONG
N210
NB210
NIT210
V210


MMK
PC-10-78-A6
PC-10-78-A8
HA 8-11,
HA6-10,
HA8-10


HOWA
H3KT10


SMW
Autoblok
ANM 250,
BBM-250,
BHM-250		 2.375 1.500 4.500 2 - KT-10200AP KT-10200P
2.375 1.500 4.500 2 - KT-10200BP -
2.375 2.000 4.500 2 - KT-10202AP KT-10202P
2.404 1.750 4.750 2 KT-10/KT-10P - KT-10-P
2.654 1.750 5.000 2 KT-10PL - KT-10PL-P
2.875 1.500 5.000 2 - KT-10201AP KT-10201P
2.875 1.500 5.000 2 - KT-10201BP -
2.875 2.000 5.250 2 - KT-10205AP KT-10205P
2.875 2.000 5.250 2 - KT-10205BP -
3.169 1.750 5.000 2 HR-82-2.0-O or OP KT-10200-31AP KT-10200-31P
2.500 2.169 1.750 4.000 2 HR-82-2.5 KT-10250-21AP KT-10250-21P
3.169 1.750 5.000 2 HR-82-2.5-O or OP KT-10250-31AP KT-10250-31P
3.000 2.375 1.500 4.500 2 - KT-10300AP KT-10300P
2.375 1.500 4.500 2 - KT-10300BP -
2.404 1.750 4.750 2 KT-10MH/KT-10MHP - KT-10MH-P
2.654 1.750 5.000 2 KT-10MHPL - KT-10MHPL-P
2.875 1.500 5.000 2 - KT-10301AP KT-10301P
2.875 2.000 5.250 2 - KT-10305AP KT-10305P
3.500 2.169 1.750 4.000 2 HR-82-3.5 KT-10350-21AP KT-10350-21P
3.169 1.750 5.000 2 HR-82-3.5-O or OP KT-10350-31AP KT-10350-31P
4.000 2.375 1.500 4.500 2 - KT-10400AP KT-10400P
2.375 1.500 4.500 2 - KT-10400BP -
2.404 1.750 4.750 2 KT-10EH/KT-10EHP - KT-10EH-P
2.654 1.750 5.000 2 KT-10EHPL - KT-10EHPL-P
2.875 1.500 5.000 2 - KT-10401AP KT-10401P
2.875 2.000 5.250 2 - KT-10405AP KT-10405P
5.000 2.169 1.750 4.000 2 HR-82-5.0 KT-10500-21AP KT-10500-21P
2.375 1.500 4.500 2 K1-16-30 KT-10500AP KT-10500P
3.169 1.750 5.000 2 HR-82-5.0-O or OP KT-10500-31AP KT-10500-31P
6.000 2.375 1.500 4.500 2 - KT-10600AP KT-10600P
K1-16-32 10" 0.630 (16mm) 12mm 1.250 (32mm) 2.000 2.375 1.500 4.500 2 - MT-10200AP MT-10200P
For
HitachiSeiki
ZA_-10,
HA_-10		 2.875 1.500 5.000 2 - MT-10201AP MT-10201P
3.000 2.375 1.500 4.500 2 - MT-10300AP MT-10300P
2.875 1.500 5.000 2 - MT-10301AP MT-10301P
4.000 2.375 1.500 4.500 2 - MT-10400AP MT-10400P
2.875 1.500 5.000 2 - MT-10401AP MT-10401P
5.000 2.375 1.500 4.500 2 - MT-10500AP MT-10500P
K1-18-30 10" & 12" 0.709 (18mm) 14mm 1.181 (30mm) 2.000 2.375 1.500 4.500 2 - HO-10200AP HO-10200P
KITAGAWA
B-12,
BT-12,
HO-12,
HOB-12,
HOH-12


SAMCHULLY
HAH12,
HCH12


STRONG
V212


MMK
PC-12-93
H-12,
HA8-12,
ZA8-12,
ZJA8-12


HOWA
HO15M12,
HO22M10,
HO24M10,
HO27M10		 3.000 2.375 1.500 4.500 2 - HO-10300AP HO-10300P
4.000 2.375 1.500 4.500 2 - HO-10400AP HO-10400P
12" 0.709 (18mm)


(some mfg's refer to this as .710)		 14mm 1.181 (30mm) 2.000 2.881 2.000 5.250 2 HR-108-2.0 KT-12200-28AP KT-12200-28P
3.125 2.000 5.500 2 - KT-12200AP KT-12200P
3.125 2.000 5.500 2 - KT-12200BP -
3.625 2.000 6.000 2 - KT-12201AP KT-12201P
3.881 2.000 6.250 2 HR-108-2.0-O or OP KT-12200-38AP KT-12200-38P
2.500 2.785 2.000 5.500 2 KT-12/KT-12P - KT-12-P
2.881 2.000 5.250 2 HR-108-2.5 KT-12250-28AP KT-12250-28P
3.125 2.000 5.500 2 - KT-12250AP KT-12250P
3.285 2.000 6.000 2 KT-12PL - KT-12PL-P
3.881 2.000 6.250 2 HR-108-2.5-O or OP KT-12250-38AP KT-12250-38P
3.000 3.125 2.000 5.500 2 - KT-12300AP KT-12300P
3.125 2.000 5.500 2 - KT-12300BP -
3.625 2.000 6.000 2 - KT-12301AP KT-12301P
3.250 2.785 2.000 5.500 2 KT-12MH/KT-12MHP - KT-12MH-P
3.285 2.000 6.000 2 KT-12MHPL - KT-12MHPL-P
3.500 2.881 2.000 5.250 2 HR-108-3.5 KT-12350-28AP KT-12350-28P
3.881 2.000 6.250 2 HR-108-3.5-O or P KT-12350-38AP KT-12350-38P
4.000 2.785 2.000 5.500 2 KT-12EH/KT-12EHP - KT-12EH-P
3.125 2.000 5.500 2 - KT-12400AP KT-12400P
3.125 2.000 5.500 2 - KT-12400BP -
3.285 2.000 6.000 2 KT-12EHPL - KT-12EHPL-P
3.625 2.000 6.000 2 - KT-12401AP KT-12401P
5.000 2.881 2.000 5.250 2 HR-108-5.0 KT-12500-28AP KT-12500-28P
3.881 2.000 6.250 2 HR-108-5.0-O or OP KT-12500-38AP KT-12500-38P
6.000 3.125 2.000 5.500 2 - KT-12600AP KT-12600P
K1-21-30 12" 0.827 (21mm) 16mm 1.181 (30mm) 2.000 3.125 2.000 5.500 2 - KT-12208AP KT-12208P
KITAGAWA
B-212,
BB-212,
BL-212,
BT-212


SAMCHULLY
HS12, HST12
MH-212†


STRONG
N212
NT212
NIT212
NB212


HOWA
H3KT12


SMW
Autoblok
BBM-305/
315,
BHM-305/315		 2.000 3.125 2.000 5.500 2 - KT-12208BP -
2.500 2.881 2.000 5.250 2 HR-112-2.5 KT-12258-28AP KT-12258-28P
2.500 3.125 2.000 5.500 2 - KT-12258AP KT-12258P
2.500 3.492 2.000 5.500 2 KT-212 or KT-212P - KT-212-P
2.500 3.881 2.000 6.250 2 HR-112-2.5-O or OP KT-12258-38AP KT-12258-38P
2.500 3.992 2.000 6.000 2 KT-212PL - KT-212PL-P
3.000 3.125 2.000 5.500 2 - KT-12308AP KT-12308P
3.000 3.125 2.000 5.500 2 - KT-12308BP -
3.250 3.492 2.000 5.500 2 KT-212MH or MHP - KT-212MH-P
3.250 3.992 2.000 6.000 2 KT-212MHPL - KT-212MHPL-P
3.500 2.881 2.000 5.250 2 HR-112-3.5 KT-12358-28AP KT-12358-28P
3.500 3.881 2.000 6.250 2 HR-112-3.5-O/OP KT-12358-38AP KT-12358-38P
4.000 3.125 2.000 5.500 2 - KT-12408AP KT-12408P
4.000 3.125 2.000 5.500 2 - KT-12408BP -
4.000 3.492 2.000 5.500 2 KT-212EH or EHP - KT-212EH-P
4.000 3.992 2.000 6.000 2 KT-212EHPL - KT-212EHPL-P
5.000 2.881 2.000 5.250 2 HR-112-5.0 KT-12508-28AP KT-12508-28P
5.000 3.881 2.000 6.250 2 HR-112-5.0-O or OP KT-12508-38AP KT-12508-38P
6.000 3.125 2.000 5.500 2 - KT-12608AP KT-12608P
K1-20-35 12 0.788 (20mm) 12mm 1.378 (35mm) 2.000 3.125 2.000 5.500 2 - SG-12200AP SG-12200P
4.000 3.125 2.000 5.500 2 - SG-12400AP SG-12400P
K1-18-32 12 0.710 (18mm) 14mm 1.260 (32mm) 2.000 3.125 2.000 5.500 2 - MT-12200AP MT-12200P
3.000 3.125 2.000 5.500 2 - MT-12300AP MT-12300P
4.000 3.125 2.000 5.500 2 - MT-12400AP MT-12400P
K1-18-38 12 0.709 (18mm) 14mm 1.488 (38mm) 2.000 3.125 2.000 5.500 2 - KT-12204AP KT-12204P
4.000 3.125 2.000 5.500 2 - KT-12404AP KT-12404P
K1-21-35 12 0.827 (21mm) 16mm 1.378 (35mm) 2.000 3.125 2.000 5.500 2 - HO-12200AP HO-12200P
HOWA
HO27M12,
HO34M12,
HO37M12		 2.500 3.125 2.000 5.500 2 - HO-12250AP HO-12250P
3.440 2.000 5.500 - - - HO-27M12-P
3.931 2.000 6.000 - - - HO-27M12PL-P
3.000 3.125 2.000 5.500 2 - HO-12300AP HO-12300P
4.000 3.125 2.000 5.500 2 - HO-12400AP HO-12400P
K1-21-40 12 0.826 16mm 1.562 2.500 3.000 2.000 5.750 2 - JP-15250AP JP-15250P
4.000 3.000 2.000 5.750 2 - JP-15400AP JP-15400P
K1-21-40 10 0.827 (21mm) 3/4 1.578 (40mm) 2.500 2.040 1-3/4 4.813 2 - HH-10250AP* HH-10250P*
10" Howa
Hollow		 3.500 2.040 1-3/4 4.813 2 - HH-10350AP* HH-10350P*
5.000 2.040 1-3/4 4.813 2 - HH-10500AP* HH-10500P*
K1-22-43 15"
&
18"		 0.866 (22mm) 20mm 1.690 (43mm) 2.500 3.410 2.500 6.500 2 HR-155-2.5 KT-15250-34AP KT-15250-34P
KITAGAWA
B-15, BT-15,
B-15, B-18
HOB-15,
HOB-18,
HOH-15,
HOH-18


STRONG
N215, N218
NT215
NIT-215/218


MMK
PC-15-120


SAMCHULLY
HAH/HCH 15
HAH/HCH 18		 3.437 2.500 6.500 2 - KT-15250AP KT-15250P
3.437 2.500 6.500 2 - KT-15250BP -
4.410 2.500 7.500 2 HR-155-2.5-O or OP KT-15250-44AP KT-15250-44P
4.437 2.500 7.500 2 - KT-15255AP KT-15255P
3.000 3.437 2.500 6.500 2 - KT-15300AP KT-15300P
4.410 2.500 7.500 2 - KT-15305AP KT-15305P
3.500 3.410 2.500 6.500 2 HR-155-3.5 KT-15350-34AP KT-15350-34P
3.410 2.500 7.500 2 HR-155-3.5-O or OP KT-15350-44AP KT-15350-44P
4.000 3.437 2.500 6.500 2 - KT-15400AP KT-15400P
4.437 2.500 7.500 2 - KT-15405AP KT-15405P
5.000 3.410 2.500 6.500 2 HR-155-5.0 KT-15500-34AP KT-15500-34P
3.437 2.500 6.500 2 - KT-15500AP KT-15500P
4.410 2.500 7.500 2 HR-155-5.0-O or OP KT-15500-44AP KT-15500-44P
6.000 3.437 2.500 6.500 2 - KT-15600AP KT-15600P
K1-26-43 15
&
UP		 1.005 (25.5mm) 20mm 1.690 (43mm) 2.500 3.437 2.500 6.500 2 HR-115-2.5 KT-15251AP KT-15251P
KITAGAWA
B215,
N15,
N18		 2.500 3.437 2.500 6.500 2 - - KT-15251BP
2.500 4.437 2.500 7.500 2 HR-115-2.5-O or OP KT-15256AP KT-15256P
3.000 3.437 2.500 6.500 2 - KT-15301AP KT-15301P
3.500 3.410 2.500 6.500 2 HR-115-3.5 KT-15351-34AP KT-15351-34P
3.500 4.410 2.500 7.500 2 HR-115-3.5-O or OP KT-15351-44AP KT-15351-44P
4.000 3.437 2.500 6.500 2 - KT-15401AP KT-15401P
4.000 4.437 2.500 7.500 2 - KT-15406AP KT-15406P
5.000 3.437 2.500 6.500 2 HR-115-5.0 KT-15501AP KT-15501P
5.000 4.410 2.500 7.500 2 HR-115-5.0-O or OP KT-15501-44AP KT-15501-44P
6.000 3.437 2.500 6.500 2 - KT-15601AP KT-15601P
K1-21-45 14
or
16		 0.827 (21mm) 16mm 1.771 (45mm) 2.500 2.980 2.000 6.250 2 - NK-14250AP* NK-14250P*
3.980 2.000 7.250 2 - NK-14257AP* NK-14257P*
3.500 2.980 2.000 6.250 2 - NK-14350AP* NK-14350P*
3.980 2.000 7.250 2 - NK-14357AP* NK-14357P*
K1-22-60 15
&
Up		 0.866 (22mm) 20mm 2.360 (60mm) 2.500 2.750 2.500 6.500 2 - KT-15252AP KT-15252P
3.750 2.500 7.500 2 - KT-15257AP KT-15257P
3.000 2.750 2.500 6.500 2 - KT-15302AP KT-15302P
4.000 2.750 2.500 6.500 2 - KT-15402AP KT-15402P
3.750 2.500 7.500 2 - KT-15407AP KT-15407P
6.000 2.750 2.500 6.500 2 - KT-15602AP KT-15602P
K1-26-38 16 1.003 (25.5mm) 20mm 1.496 (38mm) 2.500 2.940 2.500 5.500 2 - AB-16250AP* AB-16250P*
3.500 2.940 2.500 5.500 2 - AB-16350AP* AB-16350P*
5.000 2.940 2.500 5.500 2 - AB-16500AP* AB-16500P*
2.500 3.940 2.500 6.500 2 - AB-16257AP* AB-16257P*
3.500 3.940 2.500 6.500 2 - AB-16357AP* AB-16357P*
5.000 3.940 2.500 6.500 2 - AB-16507AP* AB-16507P*
