HARD JAWS- 1.5 mm x 60° Serrations
FEATURES:
- Designed for first operation roughing, expect standard runout between 0.005-0.010
- Reversible-suitable for OD & ID workholding.

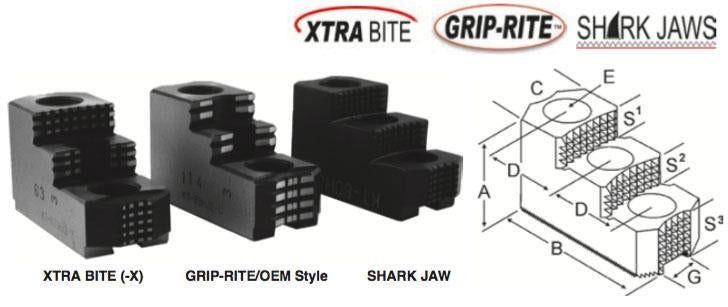

- XTRA BITE -very aggressive bite. Conical teeth for extra gripping power and ground body to provide improved runout.
- GRIP-RITE/OEM Style hard jaws have ground tips and provide better runout.
- SHARK JAWS have conical teeth for extra gripping power and black oxide for long life. Ideal for castings and scaly material.Made in the USA.
- Bison jaws feature enhanced serrations on gripping surface
- 1 & 2 step jaws available.
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-10-14 | 4/5 | 0.394 (10mm) | 8mm | 0.551 (25mm) | 0.906 | 2.087 | 1.083 | 3 | 1 | 0.394 | - | 0.672 | KT-50HJ1-B | OEM Style | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-11-20 | 6" | 0.433 (11mm) | 10mm | 0.787 (20mm) | 1.250 | 2.900 | 2.000 | 3 | 2 | 0.500 | 0.500 | 1.000 | HO-60HJ2 | Shark Jaws | D | |
K1-11-25 | 6" | 0.433 (11mm) | 8mm | 0.985 (25mm) | 1.250 | 3.000 | 1.969 | 3 | 2 | 0.500 | 0.500 | 0.969 | SG-60HJ2-X | Xtra-bite | E | |
K1-12-20 | 6" | 0.472 (12mm) | 10mm | 0.787 (20mm) | 1.220 | 2.900 | 2.000 | 3 | 1 | 0.500 | - | 1.000 | KT-60HJ1 | Shark Jaws | D | |
BB-06, B-06, B-206, BT-06 HS-06 N206 |
1.220 | 2.646 | 1.423 | 3 | 1 | 0.359 | - | 1.064 | KT-60HJ1-U | OEM Style | E | |||||
1.220 | 2.638 | 1.417 | 3 | 2 | 0.452 | - | 0.840 | KT-60HJ1-B | OEM Style | E | ||||||
1.250 | 3.000 | 1.969 | 3 | 1 | 1.000 | - | 0.969 | KT-60HJ1-X | Xtra-bite | E | ||||||
1.102 | 2.252 | 1.693 | 3 | 2 | 0.394 | 0.394 | 0.630 | KT-60HJ2-BI | Bison | B | ||||||
1.220 | 2.900 | 2.000 | 3 | 2 | 0.500 | 0.500 | 1.000 | KT-60HJ2 | Shark Jaws | D | ||||||
1.220 | 2.728 | 1.740 | 3 | 2 | 0.402 | 0.402 | 0.936 | KT-60HJ2-U | OEM Style | E | ||||||
1.250 | 3.000 | 1.969 | 3 | 2 | 0.500 | 0.500 | 0.969 | KT-60HJ2-X | Xtra-bite | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width C |
OAL B |
Height A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-14-25 | 8 | 0.551 (14mm) | 12mm | 0.984 (25mm) | 1.500 | 3.300 | 2.000 | 3 | 1 | 0.500 | - | 1.000 | KT-80HJ1 | Shark Jaws | D | |
Kitagawa B-08,B-208, Samchully HS-08 MMK ZA6-8, HA6-8 |
1.382 | 3.402 | 1.669 | 3 | 1 | 0.591 | - | 1.078 | KT-80HJ1-U | OEM Style | E | |||||
1.500 | 3.500 | 1.969 | 3 | 1 | 1.030 | - | 0.938 | KT-80HJ1-X | XTRA-BITE | E | ||||||
1.500 | 3.300 | 2.000 | 3 | 2 | 0.500 | 0.500 | 1.000 | KT-80HJ2 | Shark Jaws | D | ||||||
1.378 | 3.386 | 2.008 | 3 | 2 | 0.452 | 0.490 | 1.080 | KT-80HJ2-B | OEM Style | E | ||||||
1.378 | 3.110 | 1.929 | 3 | 2 | 0.472 | 0.472 | 1.024 | KT-80HJ2-BI | Bison | B | ||||||
1.382 | 3.409 | 2.000 | 3 | 2 | 0.465 | 0.465 | 1.070 | KT-80HJ2-U | OEM Style | E | ||||||
1.500 | 3.500 | 1.969 | 3 | 2 | 0.530 | 0.530 | 0.909 | KT-80HJ2-X | XTRA-BITE | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width C |
OAL B |
Height A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-16-25 | 8 | 0.630 (16mm) | 12mm | 0.984 (25mm) | 1.500 | 3.300 | 2.000 | 3 | 2 | 0.500 | 0.500 | 1.000 | HO-80HJ2 | Shark Jaws | D |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-16-30 | 10 | 0.630 (16mm) | 12mm | 1.181 (30mm) | 1.750 | 4.000 | 2.000 | 3 | 1 | 0.750 | - | 1.250 | KT-100HJ1 | Shark Jaws | D | |
B-10, B-210, BT-10/210 HA6/8-10, ZA6-10, ZA8-10 |
1.579 | 3.980 | 1.737 | 3 | 1 | 0.635 | - | 1.102 | KT-100HJ1-U | OEM Style | E | |||||
1.575 | 3.937 | 2.143 | 3 | 2 | 0.549 | 0.532 | 1.102 | KT-100HJ2-B | OEM Style | E | ||||||
1.750 | 4.000 | 2.500 | 3 | 2 | 0.650 | 0.500 | 1.350 | KT-100HJ2 | Shark Jaws | D | ||||||
1.579 | 3.980 | 2.130 | 3 | 2 | 0.520 | 0.520 | 1.090 | KT-100HJ2-U | OEM Style | E | ||||||
1.750 | 4.250 | 2.469 | 3 | 2 | 0.650 | 0.650 | 1.169 | KT-100HJ2-X | XTRA-BITE | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-16-32 | 10 | 0.630 (16mm) | 12mm | 1.266 (32mm) | 1.500 | 4.125 | 2.000 | 3 | 2 | 0.650 | 0.500 | 1.350 | MT-100HJ2 | Shark Jaws | D |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-18-30 | 12 | 0.709 (18mm) | 14mm | 1.181 (30mm) | 1.750 | 4.600 | 2.000 | 3 | 1 | 0.750 | - | 1.250 | KT-120HJ1 | Shark Jaws | D | |
B-12, BT-12, HA8-12, MMK-12, ZA8-12 |
1.969 | 4.091 | 2.051 | 3 | 1 | 0.669 | - | 1.382 | KT-120HJ1-U | OEM Style | E | |||||
2.000 | 4.875 | 2.469 | 3 | 1 | 1.300 | - | 1.168 | KT-120HJ1-X | XTRA-BITE | E | ||||||
1.750 | 4.600 | 2.500 | 3 | 2 | 0.650 | 0.500 | 1.350 | KT-120HJ2 | Shark Jaws | D | ||||||
2.000 | 4.042 | 2.480 | 3 | 2 | 0.543 | 0.442 | 1.495 | KT-120HJ2-U | OEM Style | E | ||||||
2.000 | 4.875 | 2.469 | 3 | 2 | 0.650 | 0.650 | 1.169 | KT-120HJ2-X | XTRA-BITE | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-21-30 | 12 | 0.827 (21mm) | 16mm | 1.181 (30mm) | 2.000 | 4.042 | 2.480 | 3 | 1 | 0.543 | - | 1.937 | KT-128HJ1-U | OEM Style | E | |
B-212 BT-212 |
1.969 | 4.055 | 2.047 | 3 | 1 | 0.669 | - | 1.378 | KT-128HJ1-B | OEM Style | E | |||||
1.750 | 4.600 | 2.500 | 3 | 2 | 0.650 | 0.500 | 1.350 | KT-128HJ2 | Shark Jaws | D | ||||||
1.772 | 4.016 | 2.284 | 3 | 2 | 0.669 | 0.669 | 1.378 | KT-128HJ2-BI | Bison | B | ||||||
2.000 | 4.042 | 2.480 | 3 | 2 | 0.543 | 0.442 | 1.495 | KT-128HJ2-U | OEM Style | E | ||||||
2.000 | 4.875 | 2.469 | 3 | 2 | 0.650 | 0.650 | 1.169 | KT-128HJ2-X | XTRA-BITE | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-22-43 | 15 & 18 |
0.866 (22mm) | 20mm | 1.693 (43mm) | 2.500 | 5.400 | 3.000 | 3 | 2 | 0.730 | 0.730 | 1.540 | KT-150HJ2 | Shark Jaws | D | |
B-15, B-18, N215/18 PC-15-120 HAH/HCH 15 |
2.448 | 5.850 | 3.385 | 3 | 2 | 0.827 | 0.827 | 1.731 | KT-150HJ2-U | OEM Style | E | |||||
2.500 | 5.500 | 3.500 | 3 | 2 | 0.950 | 0.950 | 1.600 | KT-150HJ2-X | XTRA-BITE | E | ||||||
2.441 | 5.850 | 3.386 | 3 | 2 | 0.810 | 0.810 | 1.811 | KT-150HJ2-B | OEM Style | E |
Critical Dimensions | ||||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width C |
OAL B |
Height A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
Style | Code | |
K1-26-43 | 15 & 18 |
1.005 (25.5mm) | 20mm | 1.690 | 2.500 | 5.400 | 3.000 | 3 | 2 | 0.730 | 0.730 | 1.540 | KT-151HJ2 | Shark Jaws | D | |
B-215 N18, N15 |
1.693 (43mm) | 2.448 | 5.850 | 3.385 | 3 | 2 | 0.827 | 0.827 | 1.731 | KT-151HJ2-U | OEM Style | E | ||||
2.500 | 5.500 | 3.500 | 3 | 2 | 0.950 | 0.950 | 1.600 | KT-151HJ2-X | XTRA-BITE | E |
