SOFT JAWS POINTED - 1/16" x 90° Serrations
FOR USE ON: SMW Autoblok, Rohm, Pratt Burnerd & Other Chucks
- 1/16" x 90° serrations
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel

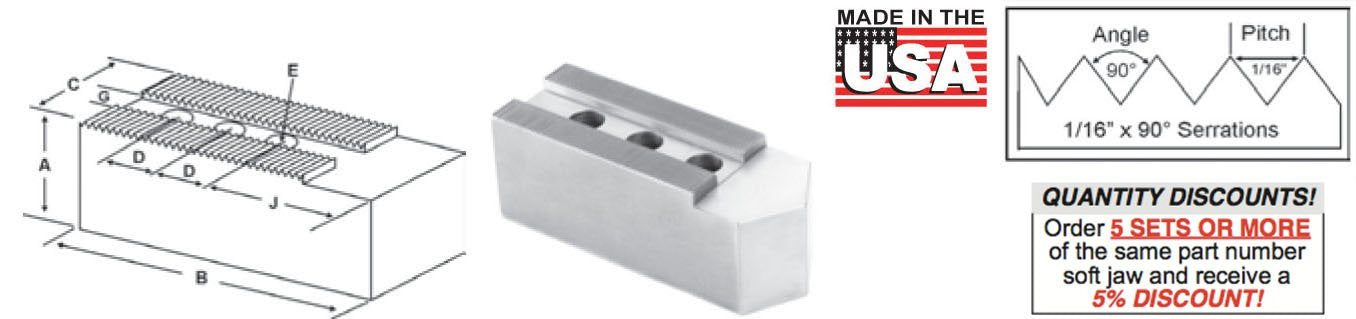

Critical Dimensions | ALUMINUM | STEEL | |||||||||
Group No |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Height Inch A |
Hole to Front J |
Width Inch C |
Length Inch B |
No. of Holes |
POINTED END Part Number |
POINTED END Part Number |
I1-43-62 | 5 | 0.433 (11mm) | 5/16 | 0.625 (16mm) | 1.50 | 0.875 | 1.00 | 2.500 | 3 | PH-5156AP | PH-5156P |
2.00 | 0.875 | 1.00 | 2.500 | 3 | PH-5256AP | PH-5256P | |||||
I1-43-71 | 5 - 6 | 0.433 (11mm) | 5/16 | 0.718 (18mm) | 1.50 | 1.250 | 1.25 | 3.125 | 3 | PH-6150AP | PH-6150P |
SP 125, STP 125, STWP 125 |
2.00 | 1.250 | 1.25 | 3.125 | 3 | PH-6200AP | PH-6200P | ||||
2.50 | 1.250 | 1.25 | 3.125 | 3 | PH-6250AP | PH-6250P | |||||
3.00 | 1.250 | 1.25 | 3.125 | 3 | PH-6300AP | PH-6300P | |||||
I1-47-59 | 5 - 6 | 0.473 | 5/16 | 0.591 | 1.50 | 0.900 | 1.00 | 2.500 | 3 | PH-5150AP | PH-5150P |
I1-47-63 | 5 - 6 | 0.472 | 8mm | 0.630 | 1.00 | 0.900 | 1.00 | 2.500 | 3 | PH-5100AP | PH-5100P |
2.00 | 0.900 | 1.25 | 2.500 | 3 | PH-5200AP | PH-5200P | |||||
I1-55-71 | 5 - 6 | 0.551 (14mm) | 3/8 | 0.710 (18mm) | 1.50 | 1.150 | 1.25 | 3.000 | 3 | PH-6155AP | PH-6155P |
3.00 | 1.150 | 1.25 | 3.000 | 3 | PH-6305AP | PH-6305P | |||||
I1-55-78 | 5-6 | 0.551 (14mm) | 3/8 | 0.787 | 2.00 | 1.625 | 1.25 | 3.000 | 3 | HA-6200AP | HA-6200P |
3.00 | 1.625 | 1.25 | 3.000 | 3 | HA-6300AP | HA-6300P | |||||
4.00 | 1.625 | 1.25 | 3.000 | 3 | HA-6400AP | HA-6400P | |||||
I1-55-87 | 5 - 10 | 0.551 (14mm) | 3/8 | 0.875 (22mm) | 1.50 | 2.125 | 1.50 | 4.375 | 3 | PH-6151AP | PH-6151P |
2.00 | 2.125 | 1.50 | 4.375 | 3 | PH-6201AP | PH-6201P | |||||
2.00 | 2.325 | 1.75 | 4.750 | 3 | PH-10205AP | PH-10205P | |||||
2.50 | 2.125 | 1.50 | 4.375 | 3 | PH-6251AP | PH-6251P | |||||
3.00 | 2.125 | 1.50 | 4.375 | 3 | PH-6301AP | PH-6301P | |||||
3.00 | 3.575 | 2.00 | 6.000 | 3 | PH-10306AP | PH-10306P | |||||
4.00 | 2.125 | 1.50 | 4.375 | 3 | PH-6401AP | PH-6401P | |||||
4.00 | 2.325 | 1.75 | 4.750 | 3 | PH-10405AP | PH-10405P | |||||
4.00 | 3.575 | 2.00 | 6.000 | 3 | PH-10406AP | PH-10406P | |||||
I1-55-98 | 5 - 6 | 0.551 (14mm) | 3/8 | 0.984 (25mm) | 1.50 | 1.650 | 1.25 | 3.250 | 2 | SM-6150AP | SM-6150P |
3.00 | 1.650 | 1.25 | 3.250 | 2 | SM-6300AP | SM-6300P | |||||
I1-59-81 | 6 | 0.590 | 10mm | 0.810 | 2.00 | 0.750 | 1.00 | 2.000 | 2 | PB-6200AP | PB-6200P |
I1-66-87 | 5 - 10 | 0.669 | 3/8 | 0.875 | 2.00 | 1.550 | 1.25 | 3.250 | 2 | PH-6203AP | PH-6203P |
SMW Autoblok BB-D 210, BH-D 210 |
8 | 0.669 (17mm) | 1/2 | 0.875 (22mm) | 2.00 | 2.125 | 1.50 | 4.375 | 3 | PH-8200AP | PH-8200P |
3.00 | 2.125 | 1.50 | 4.375 | 3 | PH-8300AP | PH-8300P | |||||
4.00 | 2.125 | 1.50 | 4.375 | 3 | PH-8400AP | PH-8400P | |||||
I1-66-100 | 8 | 0.669 (17mm) | 1/2 | 1.000 (25.5mm) | 2.00 | 1.725 | 1.50 | 4.375 | 3 | PH-8201AP* | PH-8201P* |
PBA 9821-_2110 |
3.00 | 1.725 | 1.50 | 4.375 | 3 | PH-8301AP* | PH-8301P* | ||||
4.00 | 1.725 | 1.50 | 4.375 | 3 | PH-8401AP* | PH-8401P* | |||||
I1-66-112 | 8 | 0.669 (17mm) | 1/2 | 1.125 (28.5mm) | 2.00 | 1.750 | 1.50 | 3.500 | 2 | SM-8200AP* | SM-8200P* |
3.00 | 1.750 | 1.50 | 3.500 | 2 | SM-8300AP* | SM-8300P* | |||||
5.00 | 1.750 | 1.50 | 3.500 | 2 | SM-8500AP* | SM-8500P* | |||||
I1-71-83 | 8 | 0.710 | 12mm | 0.830 | 2.00 | 0.840 | 1.75 | 3.000 | 2 | PB-6201AP | PB-6201P |
I1-78-118 | 10 - 12 | 0.787 (20mm) | 1/2 | 1.187 (30mm) | 2.50 | 2.250 | 1.75 | 5.250 | 3 | PH-10250AP | PH-10250P |
PBA 15 | 4.00 | 2.250 | 1.75 | 5.250 | 3 | PH-10400AP | PH-10400P | ||||
2.50 | 2.250 | 2.00 | 5.500 | 3 | PH-10252AP | PH-10252P | |||||
4.00 | 2.250 | 2.00 | 5.500 | 3 | PH-10402AP | PH-10402P | |||||
I1-82-102 | 10-12 | 0.826 | 16mm | 1.102 | 2.00 | 2.460 | 1.75 | 4.750 | 2 | PB-12200AP | PB-12200P |
I1-82-112 | 11 - 12 | 0.827 (21mm) | 5/8 | 1.125 (28.5mm) | 3.00 | 2.440 | 2.00 | 4.750 | 2 | PH-11300AP* | PH-11300P* |
3.00 | 2.440 | 2.00 | 5.750 | 2 | PH-11307AP* | PH-11307P* | |||||
I1-82-117 | 10 - 12 | 0.827 (21mm) | 1/2 | 1.187 (30mm) | 2.50 | 2.250 | 1.75 | 5.250 | 3 | PH-12250AP | PH-12250P |
4.00 | 2.250 | 1.75 | 5.250 | 3 | PH-12400AP | PH-12400P | |||||
2.50 | 2.875 | 2.00 | 5.250 | 2 | SM-12250AP | SM-12250P | |||||
4.00 | 2.875 | 2.00 | 5.250 | 2 | SM-12400AP | SM-12400P | |||||
I1-82-118 | 8 - 12 | 0.827 (21mm) | 5/8 | 1.187 (30mm) | 2.00 | 1.963 | 1.50 | 3.750 | 2 | PH-8205AP | PH-8205P |
SMW Autoblok BHD-250/ 305/315 | 4.00 | 1.963 | 1.50 | 3.750 | 2 | PH-8405AP | PH-8405P | ||||
2.50 | 2.875 | 2.00 | 5.250 | 2 | AT-12250AP | AT-12250P | |||||
4.00 | 2.875 | 2.00 | 5.250 | 2 | AT-12400AP | AT-12400P | |||||
I1-82-125 | 10 - 13 | 0.827 (21mm) | 5/8 | 1.250 (32mm) | 2.50 | 2.130 | 1.75 | 4.000 | 2 | PB-10250AP* | PB-10250P |
2.50 | 2.630 | 2.00 | 4.500 | 2 | PB-12250AP* | PB-12250P | |||||
I1-82-156 | 14 - 18 | 0.827 (21mm) | 5/8 | 1.562 (39.5mm) | 2.50 | 2.875 | 2.00 | 6.750 | 3 | PH-15250AP | PH-15250P |
4.00 | 2.875 | 2.00 | 6.750 | 3 | PH-15400AP | PH-15400P | |||||
2.50 | 2.875 | 2.50 | 6.750 | 3 | PH-16250AP | PH-16250P | |||||
4.00 | 2.875 | 2.50 | 6.750 | 3 | PH-16400AP | PH-16400P | |||||
I1-100-137 | 14 - 15 | 1.003 (25.5mm) | 20mm | 1.375 (35mm) | 3.50 | 2.940 | 2.25 | 5.500 | 2 | PH-15351AP* | PH-15351P* |
3.50 | 2.940 | 2.25 | 6.250 | 2 | PH-153517AP* | PH-153517P* | |||||
I1-100-175 | 16 | 1.000 (25.5mm) | 3/4 | 1.750 (44.5mm) | 3.00 | 3.500 | 2.00 | 6.000 | 2 | PB-16300AP* | PB-16300P* |
I1-118-197 | 18 | 1.181 (30mm) | 20mm | 1.970 (50mm) | 3.00 | 3.310 | 2.50 | 8.000 | 3 | PH-18300AP* | PH-18300P* |
5.00 | 3.310 | 2.50 | 8.000 | 3 | PH-18500AP* | PH-18500P* |
