Form B5 Right-Hand Long

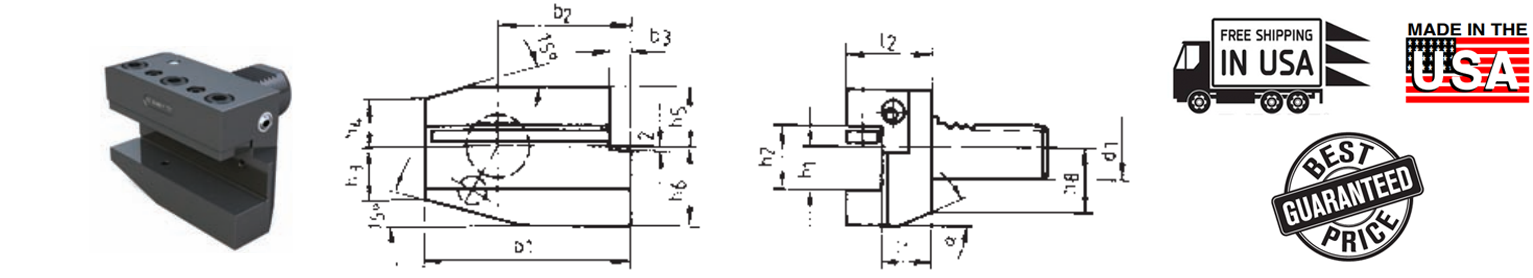

Turning Toolholder – Form B5
Right-Hand Long

Inch sizes can be ordered online. For mm size please call to order.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h5	h6	h8	L1	L2	α	Part Number
16	58	39	5	1/2	12	17	15	15	20	22	18	13	25	30	CNC86 25.1612
16	58	39	5	1/2	12	17	15	15	20	22	18	23	35	30	CNC86 25.1612.1
20	75	50	7	5/8	16	22	19	19	25	30	23	16	31	30	CNC86 25.2016
20	75	50	7	5/8	16	22	19	19	25	30	23	26	41	30	CNC86 25.2016.1
25	75	50	7	5/8	16	22	22.2	22.5	25	30	25	16	31	30	CNC86 25.2516
25	75	50	7	5/8	16	22	22.5	22.5	25	30	25	26	41	30	CNC86 25.2516.1
30	100	65	10	3/4	20	29	26	22	28	38	30	22	40	25	CNC86 25.3020
30	100	65	10	3/4	20	29	26	22	28	38	30	42	60	25	CNC86 25.3020.1
30	100	65	10	1	25	35	33	22	28	45	40	22	47	25	CNC86 25.3025
40	118	75.5	12.5	1	25	34	35	30	32.5	48	42	22	47	30	CNC86 25.4025
50	130	80	16	1	25	34	42	35	35	60		30	55		CNC86 25.5025
50	130	80	16	1-1/4	32	41	42	35	35	60		30	61		CNC86 25.5032
60	145	82.5	16	1-1/4	32	41	46	42.5	42.5	62.5		30	61		CNC86 25.6032
80	190	110	20	1-1/2	40	53	60	55	55	80		40	78		CNC86 25.8040
