Daewoo / Doosan Tool Blocks

Daewoo / Doosan Tool Blocks
Tool Block Features

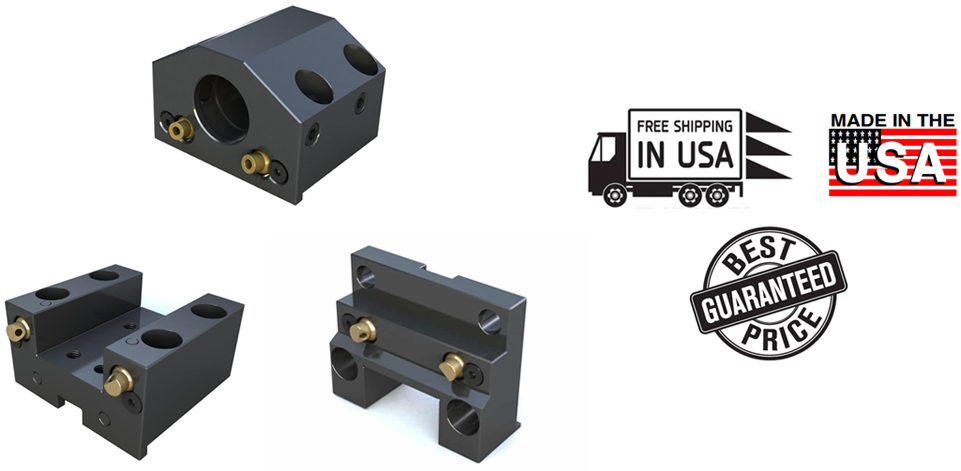

  • Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
  • Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
  • Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
  • Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
  • Components Included: Wedges, Coolant Nozzles and Set Screws.
  • Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
  • Made in the USA.
New Items
  • VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
  • ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
  • Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
  • More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bolt Hole Pattern:
58mm x 58mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Doosan BMT45, Turret, Lynx 220 1" 65mm BMT45-8425 BMT45-8311A .75" Sq. BMT45-8411A .75" Sq. CALL
1.25" 65mm BMT45-8432 CALL
Bolt Hole Pattern:
64mm x 64mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Doosan BMT55, Doosan TT18SY, Doosan TT1800Sy, Puma 2000 1.25" 70mm BMT55-8432 BMT55-8311 1" Sq. BMT55-8411 1" Sq. CALL
1.5" 70mm BMT55-8435 BMT55-8311 DBL 1" Sq. CALL
2" 70mm BMT55-8436 CALL
Bolt Hole Pattern:
73mm x 70mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Doosan BMT65, Puma 3100, Doosan 2600ms, Doosan TT2500SY, Puma V400, Puma V300M Puma400MB, Puma 300LM 1.5" 100mm BMT65-8435 BMT65-8311 1" Sq. BMT65-8411 1" Sq. CALL
2" 100mm BMT65-8436 BMT65-8311 DBL 1" Sq. CALL
Bolt Hole Pattern:
90mm x 90mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Doosan BMT75, Puma V550, Puma 400 2" 60mm BMT75-8436 BMT75-8311 1" Sq. BMT75-8411 1" Sq. CALL
2.5" 60mm BMT75-8437 BMT75-8311 1.25" Sq. BMT75-8411 1.25" Sq. CALL
3" 60mm BMT75-8475 CALL
Bolt Hole Pattern:
72mm x 45mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Puma 200, Puma 240C, With Locator Keyway 1.5" 40mm Puma200K-8435 Puma200K-8311 1" Sq. Puma200K-8411 1" Sq. CALL
2" 40mm Puma200K-8436 CALL
Bolt Hole Pattern:
72mm x 45mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Puma 200, Puma 240C, With Locator Slot 1.5" 40mm Puma200S-8435 Puma200S-8311 1" Sq. Puma200S-8411 1" Sq. CALL
2" 40mm Puma200S-8435 CALL
Bolt Hole Pattern:
80mm x 55mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Puma 300, Puma 250L, Puma 300L, Daewoo 12, With Locator Slot 1.5" 40mm Puma300S-8435 Puma300S-8311 1" Sq. Puma300S-8411 1" Sq. CALL
2" 40mm Puma300S-8436 CALL
Bolt Hole Pattern:
80mm x 55mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Puma 300, Puma 250L , Puma 300L , Daewoo 12, With Locator Keyway 1.5" 40mm Puma300K-8435 Puma300K-8311 1" Sq. Puma300K-8411 1" Sq. CALL
2" 40mm Puma300K-8436 CALL
