Boring Bar Holder– Form E1

Boring Bar Holder– Form E1
Internal Coolant Flow

Inch sizes can be ordered online. For mm size please call to order.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

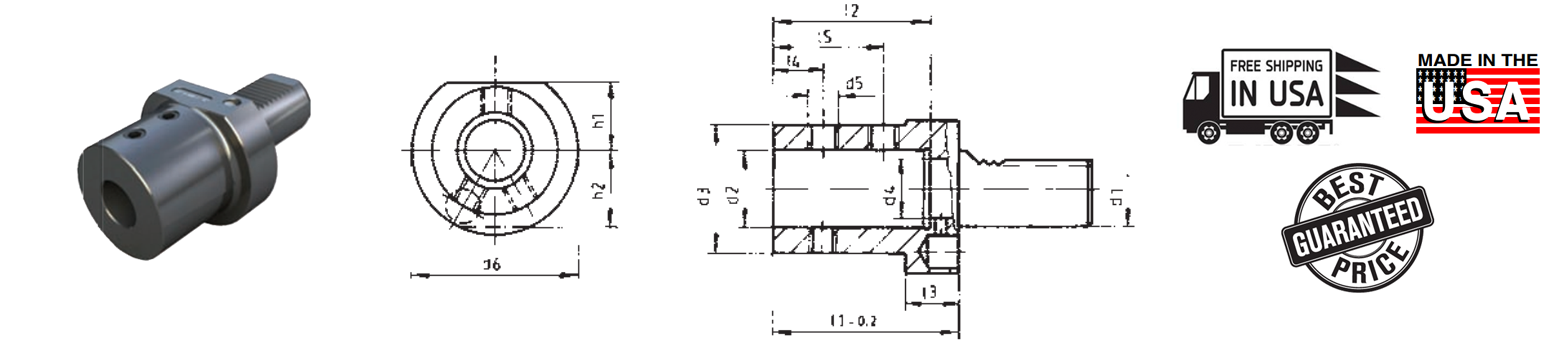

d1	d2 in	d2 mm	d3	d4	d5	d6	h1	h2	L1	L2	L3	L4	L5	Part Number
20	5/8	16	48	12	3/8-16	50	23	23	67	54	18	15	35	CNC86 51.2016
20	3/4	20	48	12	3/8-16	50	23	23	67	54	18	15	35	CNC86 51.2020
20	1	25	48	17	3/8-16	50	23	23	71	59	18	17	40	CNC86 51.2025
25	5/8	16	41	12	3/8-16	58	25	25	67	54	18	15	35	CNC86 51.2516
25	3/4	20	44	12	3/8-16	58	25	25	67	54	18	15	35	CNC86 51.2520
25	1	25	45	17	3/8-16	58	25	25	71	59	18	17	40	CNC86 51.2525
25	1-1/4	32	50	24	1/2-13	60	25	25	80	63	22	15	38	CNC86 51.2532
30	5/16	8	46	6	1/4-20	68	28	30	67	54	22	15	34	CNC86 51.3008
30	1/2	12	46	10	1/4-20	68	28	30	67	54	22	15	34	CNC86 51.3012
30	5/8	16	46	12	3/8-16	68	28	30	67	54	22	15	35	CNC86 51.3016
30	3/4	20	50	12	3/8-16	68	28	30	67	54	22	15	35	CNC86 51.3020
30	1	25	55	17	3/8-16	68	28	30	71	59	22	17	40	CNC86 51.3025
30	1-1/4	32	62	24	3/8-16	68	28	30	75	63	22	20	44	CNC86 51.3032
30	1-1/2	40	66	32	5/8-11	68	28	30	90	73	22	22	50	CNC86 51.3040
40	5/8	16	54	12	3/8-16	83	32.5		67	54	22	15	35	CNC86 51.4016
40	3/4	20	54	12	3/8-16	83	32.5		67	54	22	15	35	CNC86 51.4020
40	1	25	63	17	3/8-16	83	32.5		75	59	22	17	40	CNC86 51.4025
40	1-1/4	32	69	24	3/8-16	83	32.5		75	63	22	20	44	CNC86 51.4032
40	1-1/2	40	76	32	5/8-11	83	32.5		90	73	22	22	54	CNC86 51.4040
40	1-3/4	45	83	40	5/8-11	83	32		100	83		24	60	CNC86 51.4045
40	2	50	81	32	5/8-11	83	32.5		100	83	22	24	60	CNC86 51.4050
50	3/4	20	57	12	3/8-16	98	35		67	54	30	15	35	CNC86 51.5020
50	1	25	63	17	3/8-16	98	35		80	59	30	17	40	CNC86 51.5025
50	1-1/4	32	69	24	3/8-16	98	35		80	63	30	20	44	CNC86 51.5032
50	1-1/2	40	76	32	5/8-11	98	35		100	73	30	22	54	CNC86 51.5040
50	2	50	88	42	5/8-11	98	35		100	83	30	24	60	CNC86 51.5050
60	3/4	20	57	12	3/8-16	123	42.5		80	54	30	15	35	CNC86 51.6020
60	1	25	63	17	3/8-16	123	42.5		80	59	30	17	40	CNC86 51.6025
60	1-1/4	32	69	24	3/8-16	123	42.5		80	63	30	20	44	CNC86 51.6032
60	1-1/2	40	76	32	5/8-11	123	42.5		100	73	30	22	54	CNC86 51.6040
60	1-3/4	45	83	40	5/8-11	123	42		100	83	30	22	54	CNC86 51.6045
60	2	50	89	40	5/8-11	123	42.5		100	83	30	24	60	CNC86 51.6050
60	2-1/2	65	89	40	5/8-18	123	42		100	83	30	22	54	CNC86 51.6065
80	3/4	20	57	12	3/8-16	158	55		80	54	40	15	35	CNC86 51.8020
80	1	25	63	17	3/8-16	158	55		80	59	40	17	40	CNC86 51.8025
80	1-1/4	32	69	24	3/8-16	158	55		80	63	40	20	44	CNC86 51.8032
80	1-1/2	40	76	32	1/2-13	158	55		100	73	40	22	54	CNC86 51.8040
80	2	50	88	42	1/2-13	158	55		100	83	40	24	60	CNC86 51.8050
