SOFT JAWS FLAT - 3/32" x 90° Serrations
FOR USE ON: SMW Autoblok, Forkardt, Rohm, Pratt Burnerd & Other Chucks
- 3/32" x 90° serrations
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel

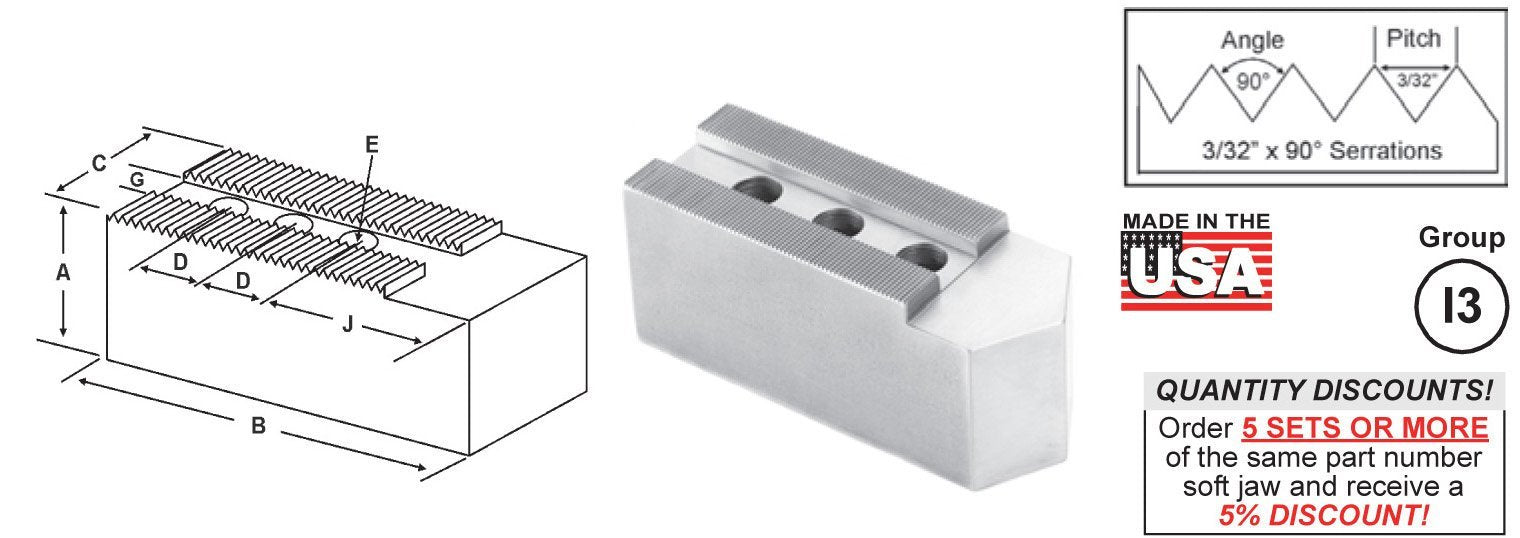

Critical Dimensions | ALUMINUM | STEEL | ||||||||
Group No |
Groove Width G |
Screw Size E |
Hole Space D |
Height Inch A |
Hole to Front J |
Width Inch C |
Length Inch B |
No. of Holes |
FLAT END Part Number |
FLAT END Part Number |
I3-100-138 | 1.004 (25.5mm) | 20mm | 1.380 (35mm) | 2.50 | 3.500 | 2.50 | 6.50 | 2 | FK-16250AF | FK-16250F |
ROHM KFD 400- 500-630 |
2.50 | 3.500 | 2.50 | 8.00 | 3 | FK-16251AF | FK-16251F | |||
4.00 | 3.500 | 2.50 | 6.50 | 2 | FK-16400AF | FK-16400F | ||||
4.00 | 3.500 | 2.50 | 8.00 | 3 | FK-16401AF | FK-16401F | ||||
I3-100-156 | 1.000 (25.5mm) | 3/4 | 1.562 (39.5mm) | 3.00 | 3.250 | 2.50 | 6.50 | 2 | SM-16300AF | SM-16300F |
SMW Autoblok ALD-400, BB 500-ES, BB 630-ES |
3.00 | 3.750 | 2.50 | 8.00 | 3 | SM-16301AF | SM-16301F | |||
4.00 | 3.250 | 2.50 | 6.50 | 2 | SM-16400AF | SM-16400F | ||||
5.00 | 3.250 | 2.50 | 6.50 | 2 | SM-16500AF | SM-16500F | ||||
5.00 | 3.750 | 2.50 | 8.00 | 3 | SM-16501AF | SM-16501F | ||||
I3-100-175 | 1.000 (25.5mm) | 3/4 | 1.750 (44.5mm) | 3.50 | 7.460 | 2.50 | 10.00 | 2 | FK-25350AF* | FK-25350F* |
5.00 | 7.460 | 2.50 | 10.00 | 2 | FK-25500AF* | FK-25500F* | ||||
I3-110-162 | 1.102 (28mm) | 3/4 | 1.625 (41.5mm) | 3.00 | 3.630 | 3.50 | 6.75 | 2 | SM-20300AF* | SM-20300F* |
3.00 | 5.880 | 3.50 | 9.00 | 2 | SM-20307AF* | SM-20307F* | ||||
5.00 | 3.630 | 3.50 | 6.75 | 2 | SM-20500AF* | SM-20500F* | ||||
5.00 | 5.880 | 3.50 | 9.00 | 2 | SM-20507AF* | SM-20507F* | ||||
I3-118-250 | 1.181 (30mm) | 1.00 | 2.500 (63.5mm) | 3.00 | 4.250 | 3.50 | 8.00 | 2 | SM-24300AF | SM-24300F |
5.00 | 4.250 | 3.50 | 8.00 | 2 | SM-24500AF | SM-24500F | ||||
3.00 | 7.000 | 3.50 | 11.00 | 2 | SM-24301AF | SM-24301F | ||||
5.00 | 7.000 | 3.50 | 11.00 | 2 | SM-24501AF | SM-24501F | ||||
I3-118-275 | 1.181 (30mm) | 1.00 | 2.750 (70mm) | 3.50 | 4.500 | 3.50 | 10.00 | 2 | SM-40350AF* | SM-40350F* |
5.00 | 4.500 | 3.50 | 10.00 | 2 | SM-40500AF* | SM-40500F* |
