HARD JAWS - 3.0 mm x 60° Serrations
HARD JAWS-2 STEP
3.0mm x 60° Serrations
FEATURES:
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
3.0mm x 60° Serrations
FEATURES:
- Designed for first operation roughing, expect standard runout between 0.005-0.010
- Reversible-suitable for OD & ID workholding.

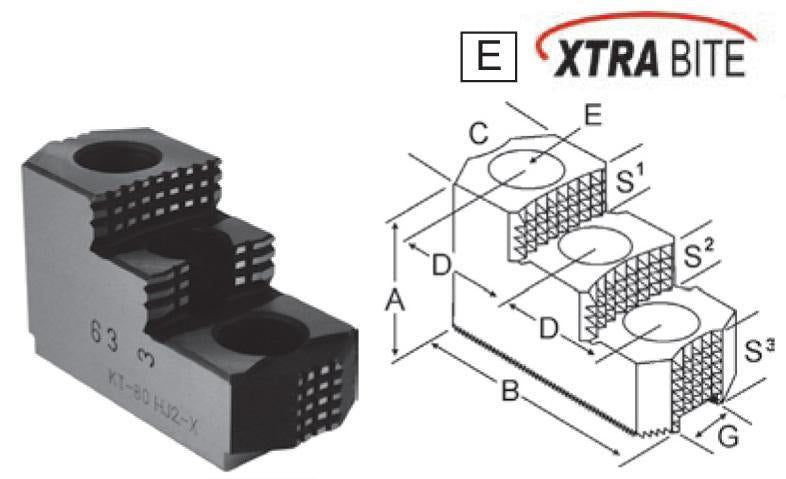

- XTRA BITE -very aggressive bite. Has conical teeth for extra gripping power and ground body to provide improved runout.
- 1 & 2 step jaws available.
Critical Dimensions | ||||||||||||||
Group Number |
Chuck Size |
Groove Width G |
Screw Size E |
Hole Space D |
Width Inch C |
OAL Inch B |
Height Inch A |
No. of Holes |
No. of Steps |
Top Step Ht S1 |
Mid Step Ht S2 |
Bot Step Ht S3 |
Part Number |
|
K3-16-30 | 10 | 0.630 (16mm) | 12mm | 1.181 (30mm) | 1.750 | 4.250 | 2.500 | 3 | 2 | 0.650 | 0.650 | 1.200 | H3-100HJ2-X | |
K3-18-30 | 12 | 0.710 (18mm) | 14mm | 1.181 (30mm) | 1.750 | 4.875 | 2.469 | 3 | 2 | 0.650 | 0.650 | 1.169 | H3-120HJ2-X | |
15-20 | 1.023 (26mm) | 20mm | 1.969 (50mm) | 2.500 | 6.500 | 3.469 | 3 | 2 | 0.950 | 0.950 | 1.569 | H3-150HJ2-X | ||
K3-22-50 | 15 | 0.866 (22mm) | 20mm | 1.969 (50mm) | 2.500 | 6.500 | 3.469 | 3 | 2 | 0.950 | 0.950 | 1.569 | M3-150HJ2-X | |
K3-25-49 | 18-24 | 0.984 (25mm) | 20mm | 1.907 (48.5mm) | 2.500 | 6.500 | 3.469 | 3 | 2 | 0.950 | 0.950 | 1.569 | K3-240HJ2-X |
