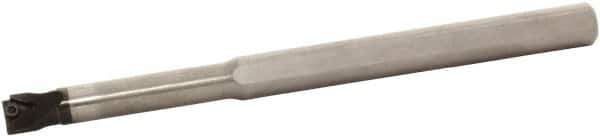

Sumitomo - 3/8" Min Bore Diam, 5" OAL, 3/8" Shank Diam, C-STUP Indexable Boring Bar - 1.8" Max Bore Depth, TPGT 63 Insert, Screw Holding Method
Item #: 53948311
Brand: Sumitomo
Model #: 2000W2E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | C-STUP |
| Series | Sumi-UFO |
| Minimum Bore Diameter (Decimal Inch) | 0.3750 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 1.8000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | TPGT 63 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.1880 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Rake Angle | -10 |
| Complete Insert Compatibility | TPGT 63LFW |
| Toolholder Material | Carbide |
