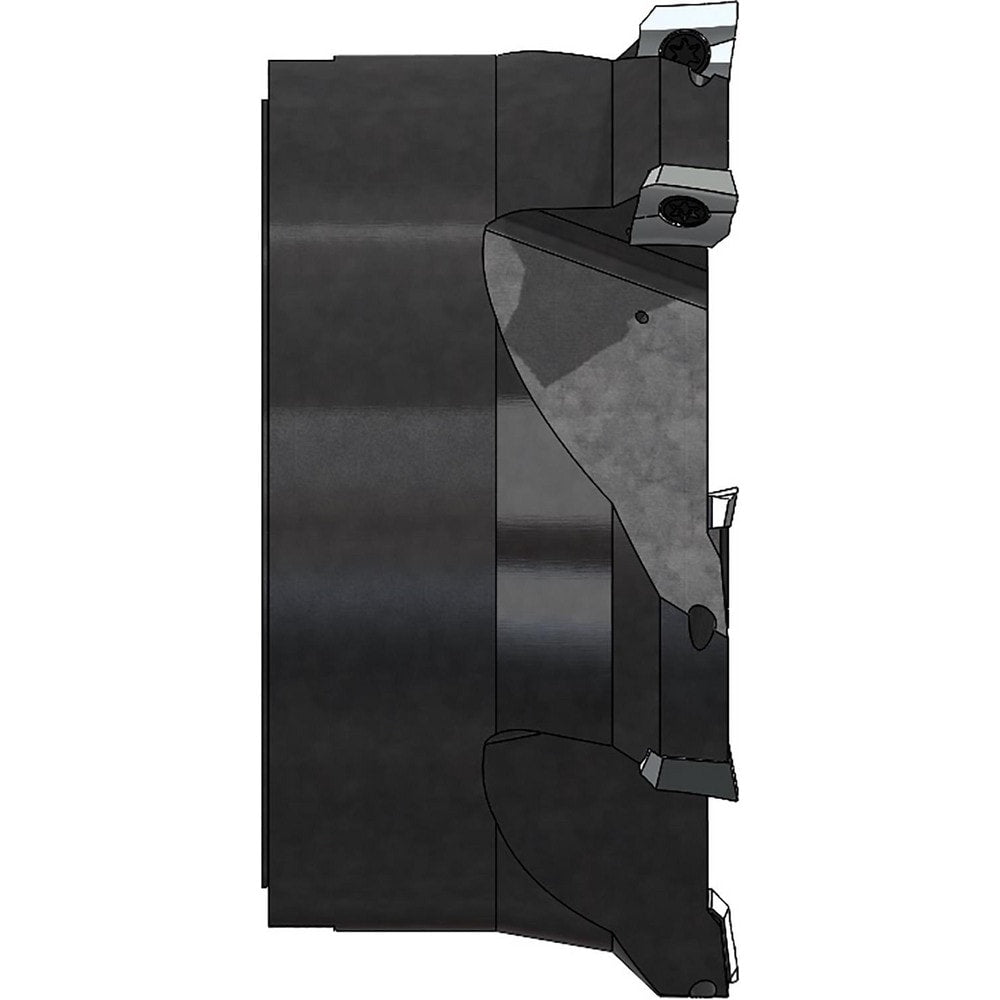

Indexable High-Feed End Mills; Cutting Diameter (Decimal Inch): 6.0000; Cutting Diameter (mm): 152.40; Minimum Cutting Diameter (Decimal Inch): 6.0000; Maximum Cutting Diameter (Decimal Inch): 6.0000
Item #: 07935380
Brand: A.B. Tools
Model #: SHELL-600
Product Specifications
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Cutting Diameter (mm) | 152.40 |
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Toolholder Style | SHELL SHEAR HOG |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Style | ADEH |
| Compatible Insert Size Code | ADEH |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Overall Length (Decimal Inch) | 2.25 |
| Series | SHEAR HOG |
| Head Length (Decimal Inch) | 2.2500 |
| Weldon Flat | No |
| Complete Insert Compatibility | ADEH |
| Number Of Flutes | 6 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
